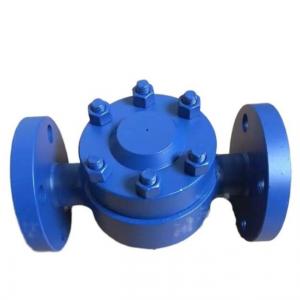

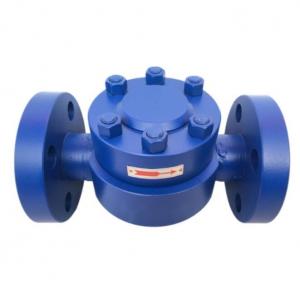

High pressure disc steam trap

High pressure disc steam trapHigh pressure disc steam trap
High pressure disc steam trap

High pressure disc steam trap Product introduction

 High pressure disc steam trap is used for high temperature and high pressure steam system, high pressure disc steam trap has new-type crown valve plate and strong anti corrosion capability.High pressure disc steam trapcan be used for high temperature-pressure steam pipelines and equipments.

High pressure disc steam trap feature
1.Automatic blowoff mechanism is installed inside the valve. It is a new-type crown valve plate with reliable sealing,and steam heat preservation mechanism with hign-efficiency energy conservation.
2.Rapid air and condensate water exhaust while starting the equipment,great displacement and small steam leakage.
3.Strong anticorrosion,reliable operation and durability.
4.Free of adjustment and remarkable energy-saving result within the working pressure.

High pressure disc steam trap specification
Product Name: High pressure disc steam trap
Pressure Rating: 1.6-16.0 Mpa.
Nominal Diameter: DN15-50 mm.
Body Material: cast steel,Stainless Steel,Alloy Steel.
Standard Flanges: DIN, ANSI, JIS, JB79.
Standard Screws:NPT,BSP.
Stand Welding:Socket Welded.

High pressure disc steam trap performance
Maximum Working Temperature  ℃                550
Maximum Pressure Differential(Mpa) 15.0
Minimum Pressure Differential(Mpa) 0.3
