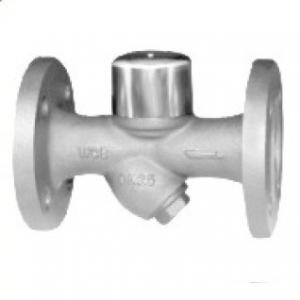

CS49H Flanged type steam trap

CS49H Flanged type steam trapCS49H Flanged type steam trap
CS49H Flanged type steam trap

CS49H Flanged type steam trap Product introduction

CS49H Flanged type steam trap is applicable in the steam pipeline and equipment to avoid steam leakage and eliminate steam leakage in order to conserve energy and keep from water hammer and other faults.CS49H Flanged type steam trap is widely used in applications where the condensate must be removed immediately from steam lines and steam equipment. They discharge the condensate near the saturation temperature.

CS49H Flanged type steam trap specification

Product Name: thermodynamic steam trap.
Pressure Rating: 1.6- 6.4 Mpa.
Nominal Diameter: DN15-50 mm.
Body Material: Steel WCB,Stainless Steel.
Standard flanges: DIN, ANSI, JIS.Standard Screwed:NPT,BSP.

CS49H Flanged type steam trap performance
Nominal pressure                                                PN16-64
Maximun design pressure(PMA) 64bar g
Maximun design temperature(TMA) 400
Minimun design temperature(TMI) -10
Maximun upstream pressure for
saturated steam service(PMO)
42bar g
Maximun operating temperature(TMO) 400
Minimun operating temperature(TMIO) 0
Minimun differential pressure( PMiX ) 0.25bar
Maximum cold hydraulic test pressure 95bar g
