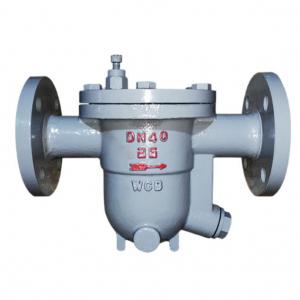

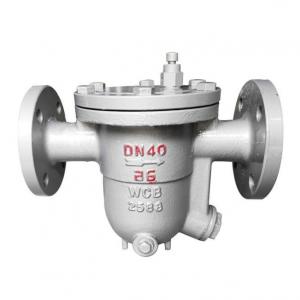

CS41H Flanged free ball float steam trap continues dischargins saturation condensed water without accumulation,and so get the maximum thermal efficiency.when steam pressure changes,the ball  float can adjust the opening of valve seat whthout influence,and so CS41H Flanged free ball float steam trap is stable whith automatic and manual releaser,and so its exhaust performance is good without airlock and working is smooth without noise

CS41H Flanged free ball float steam trap specification

Size: DN15~DN150

Connection: RF, NPT,SW

Pressure: PN10, PN16, PN25,PN40


CS41H Flanged free ball float steam trap material

CS41H Flanged free ball float steam trap parameter

How does CS41H Flanged free ball float steam trap work?

By the action of buoyance,the position of ball float changes with the water level of condesation water and adjust the opening of valve seat automatically,continue to discharge condensation water.When the condensation water stops,the ball float fall onto bottom by gravity,the close opening of drain valve.The opening of drain valve is below the water lever,and so the water is separated from steam automatically,and form water seal without steam leakage


CS41H Flanged free ball float steam trap application

CS41H Flanged free ball float steam trap is used for the steam heating equipment,condensation water recovery system and the place where needs removing condesation water at quick speed ,and so stop steam leakage effectively and obtains optimum heating.
