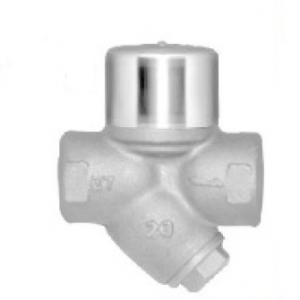

CS19H Disc type trap Product introduction

CS19H Disc type trap is applicable in the steam pipeline and equipment to avoid steam leakage and eliminate steam leakage in order to conserve energy and keep from water hammer and other faults.CS19H Disc type trap is widely used in applications where the condensate must be removed immediately from steam lines and steam equipment. They discharge the condensate near the saturation temperature.

CS19H Disc type trap specification

Product Name: thermodynamic steam trap.
Pressure Rating: 1.6- 6.4 Mpa.
Nominal Diameter: DN15-50 mm.
Body Material: Steel WCB,Stainless Steel.
Standard flanges: DIN, ANSI, JIS.Standard Screwed:NPT,BSP.

CS19H Disc type trap performance
Nominal pressure                                                PN16-64
Maximun design pressure(PMA) 64bar g
Maximun design temperature(TMA) 400
Minimun design temperature(TMI) -10
Maximun upstream pressure for
saturated steam service(PMO)
42bar g
Maximun operating temperature(TMO) 400
Minimun operating temperature(TMIO) 0
Minimun differential pressure( PMiX ) 0.25bar
Maximum cold hydraulic test pressure 95bar g

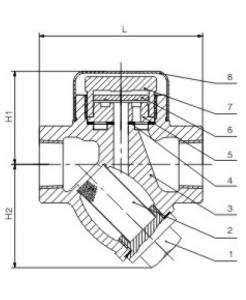

CS19H Disc type trap Main dimension
