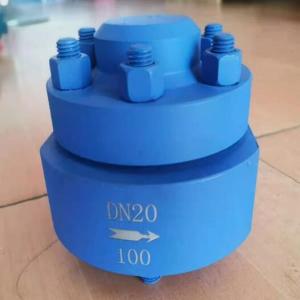

Thermodynamic Steam Trap Manufacturer China Product introduction

 Thermodynamic Steam Trap Manufacturer China, disc type steam trap factory and supplier. Thermodynamic Steam Trap is disc type structure for high temperature and high pressure saturation and steam main and turbine steam subcritical use. Automatic blowing device is installed inside the Thermodynamic Steam Trap. New type valve disc, seal is very reliable. Steam insulation device, high efficiency and energy saving.

Thermodynamic Steam Trap can quickly discharge the air and cold condensate when the equipment starts, with big displacement and small steam leakage rate. Strong corrosion resistance. Reliable action, durable. Within the range of working pressure, without adjustment, energy saving. Thermodynamic Steam Trap is widely used in chemical, petrochemical, petroleum, paper, mining, power, food, pharmaceutical, mechanical equipment supporting, electronic industry and other steam fields.
Thermodynamic Steam Trap structure

Thermodynamic Steam Trap feature:
1.Automatic blowoff mechanism is installed inside the valve. It is a new-type crown valve plate with reliable sealing,and steam heat preservation mechanism with hign-efficiency energy conservation.
2.Rapid air and condensate water exhaust while starting the equipment,great displacement and small steam leakage.
3.Strong anticorrosion,reliable operation and durability.
4.Free of adjustment and remarkable energy-saving result within the working pressure.

Thermodynamic Steam Trap specification:
Product Name: Thermodynamic Steam Trap
Pressure Rating: 1.6-42.0 Mpa,Class 150- Class 2500
Nominal Diameter: DN15-50 mm.
Body Material: cast steel,Stainless Steel,Alloy Steel.
Standard Flanges: DIN, ANSI, JIS, JB79.
Standard Screws:NPT,BSP.
Stand Welding:Socket Welded.

Thermodynamic Steam Trap performance:
Maximum Working Temperature  ℃                550
Maximum Pressure Differential(Mpa) 15.0
Minimum Pressure Differential(Mpa) 0.3
