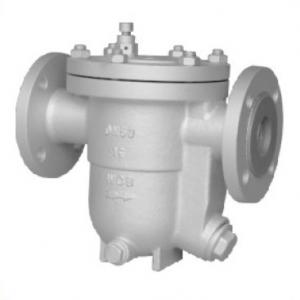

CS41H Free float ball steam trap

CS41H Free float ball steam trapCS41H Free float ball steam trap
CS41H Free float ball steam trap

CS41H Free float ball steam trap Product introduction

CS41H Free float ball steam trap continues dischargins saturation condensed water without accumulation,and so get the maximum thermal efficiency.when steam pressure changes,the ball  float can adjust the opening of valve seat without influence,and so CS41H Free float ball steam trap is stable whith automatic and manual releaser,and so its exhaust performance is good without airlock and working is smooth without noise

CS41H Free float ball steam trap specification
Size: DN15~DN150

Connection: RF, NPT,SW

Pressure: PN10, PN16, PN25,PN40

Materials:Carbon Steel, Low temperature steel, Stainless steel.


CS41H Free float ball steam trap material

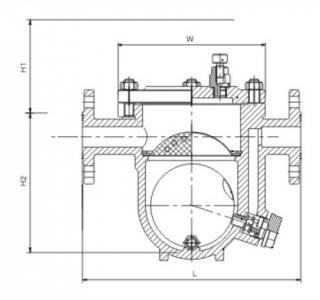

CS41H Flanged free ball float steam trap

No.                Part Name                                                   Materials
1 Body WCB,WC6,SS304,SS316
2 Screw Plug 35,2Cr13
3 Screw Plug 35,2Cr13
4 Seat 2Cr13
5 Float Ball SS304
6 Screen SS304
7 Circlip A3
8 Bonnet A105
9 Sylphon SS304
10 Seat 2Cr13
11 Screw Plug 35,2Cr13


How does CS41H Free float ball steam trap work?

By the action of buoyance,the position of ball float changes with the water level of condesation water and adjust the opening of valve seat automatically,continue to discharge condensation water.When the condensation water stops,the ball float fall onto bottom by gravity,the close opening of drain valve.The opening of drain valve is below the water lever,and so the water is separated from steam automatically,and form water seal without steam leakage


CS41H Free float ball steam trap Application

CS41H Float ball steam trap is used for the steam heating equipment,condensation water recovery system and the place where needs removing condesation water at quick speed ,and so stop steam leakage effectively and obtains optimum heating.
