1500LB 2500LB High Pressure Steam Trap

1500LB 2500LB High Pressure Steam Trap1500LB 2500LB High Pressure Steam Trap
1500LB 2500LB High Pressure Steam Trap

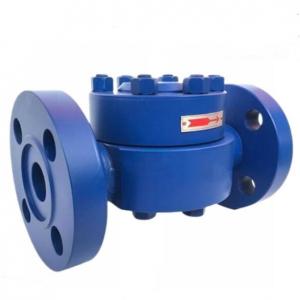

1500LB 2500LB High Pressure Steam Trap Product introduction

 1500LB 2500LB High pressure steam trap manufacturer, factory and supplier in China. 1500LB 2500LB High pressure steam trap for high temperature and high pressure saturation and steam main and turbine steam subcritical use. Automatic blowing device is installed inside the 1500LB 2500LB High pressure steam trap. New type valve disc, seal is very reliable. Steam insulation device, high efficiency and energy saving.

1500LB 2500LB High pressure steam trap can quickly discharge the air and cold condensate when the equipment starts, with big displacement and small steam leakage rate. Strong corrosion resistance. Reliable action, durable. Within the range of working pressure, without adjustment, energy saving. 1500LB 2500LB High pressure steam trap is widely used in chemical, petrochemical, petroleum, paper, mining, power, food, pharmaceutical, mechanical equipment supporting, electronic industry and other steam fields.

1500LB 2500LB High pressure steam trap feature:
1.Automatic blowoff mechanism is installed inside the valve. It is a new-type crown valve plate with reliable sealing,and steam heat preservation mechanism with hign-efficiency energy conservation.
2.Rapid air and condensate water exhaust while starting the equipment,great displacement and small steam leakage.
3.Strong anticorrosion,reliable operation and durability.
4.Free of adjustment and remarkable energy-saving result within the working pressure.

1500LB 2500LB High pressure steam trap specification:
Product Name:
1500LB 2500LB High pressure steam trap
Pressure Rating: 1.6-42.0 Mpa,Class 150- Class 2500
Nominal Diameter: DN15-50 mm.
Body Material: cast steel,Stainless Steel,Alloy Steel.
Standard Flanges: DIN, ANSI, JIS, JB79.
Standard Screws:NPT,BSP.
Stand Welding:Socket Welded.

1500LB 2500LB High pressure steam trap performance:
Maximum Working Temperature  ℃                550
Maximum Pressure Differential(Mpa) 15.0
Minimum Pressure Differential(Mpa) 0.3
