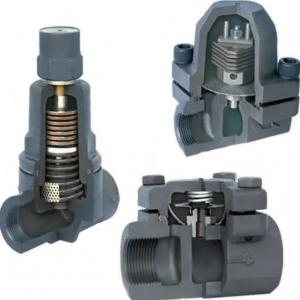

CS17H Threaded Bimetallic steam trap Product introduction

 CS17H Threaded Bimetallic steam trap adopts imported material as its hot sensitive element, CS17H Threaded Bimetallic steam trap is high sensitivity and longtime useful life. There is condensation water in front of valve for forming water-seal, no fresh steam leakage.
Good exhaust, water hammer resistance and can be installed at any angle.Mainly used for the steam pipe and overheating pipe, clear away the releasing temperature of condensation water automatically with good saving energy.By the deformation of bimetallic strip caused by the change of temperature, drive the valve plug for opening and closing the steam trap seat hole, realizing stopping steam and drain.

CS17H Threaded Bimetallic steam trap specification
Product: CS17H Threaded Bimetallic steam trap
Pressure Rating: 1.6- 4.0Mpa
Size: :DN15-50
Material: cast steel
Standard flanges: DIN, ANSI, JIS; Standard screwed: NPT BSP

Working Pressure Range 0.05~1.6Mpa Allowable maximum temperature 325
Valve body, valve cap WCB / 304 Hot sensitive element Import bimetallic
Valve seat 2Cr13 / 304 Screen Stainless Steel

CS17H Threaded Bimetallic steam trap feature
1. Adjustable bimetallic steam trap is usually compact, yet can have a large condensate capacity.
2. Adjustable bimetallic steam trap is wide open when the steam trap is cold, giving good air venting capability and maximum condensate discharge capacity under 'start-up' conditions.
3. As condensate tends to drain freely from the outlet, this type of steam trap will not freeze up when working in an exposed position. The bodies of some bimetallic steam traps are designed in such a way that they will not receive any damage even if freezing does occur.
4. Adjustable bimetallic steam trap is usually able to withstand water hammer, corrosive condensate, and high steam pressures.
5. The bi metal elements can work over a wide range of steam pressures without any need for a change in the size of the valve orifice.
6. If adjustable bimetallic steam trap is on the downstream side of the seat, it will tend to resist reverse flow through the steam trap. However, if there is any possibility of reverse flow, a separate check valve should be fitted downstream of the trap.
7. As condensate is discharged at varying temperatures below saturation temperature and, provided water logging of the steam space can be tolerated, some of the enthalpy of saturated water can be transferred to the plant. This extracts the maximum energy from the condensate before it drains to waste, and explains why these traps are used on tracer lines where condensate is often dumped to waste.
8.Maintenance of this type of steam trap presents few problems, as the internals can be replaced without removing the trap body from the line.The flash steam produced whenever condensate is discharged from a higher to a lower pressure will tend to cause an increase in back pressure in the condensate line. The cooling leg allows the condensate to cool down, producing less flash steam in the condensate line and thus helping to reduce the back pressure.

Basic information for selecting CS17H Threaded Bimetallic steam trap
Condensation water loading (discharge)kg/h (select the multiplying power 2-3 times).
Maximum working pressure Mpa
Operation pressure differential
Valve material and nominal pressure
Connection mode and dimension
