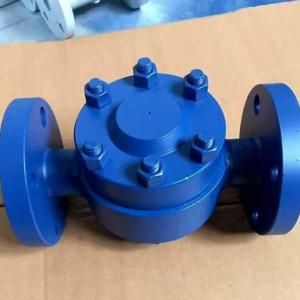

F11 F22 High Temperature Steam Trap

F11 F22 High Temperature Steam TrapF11 F22 High Temperature Steam Trap
F11 F22 High Temperature Steam Trap

F11 F22 High Temperature Steam Trap Product introduction

F11 F22 High temperature steam trap manufacturer, factory and supplier. F11 F22 High temperature steam trap for high temperature and high pressure saturation and steam main and turbine steam subcritical use, the max temperature for F11 is 540℃, the max temperature for F22 is 570. Automatic blowing device is installed inside the F11 F22 High temperature steam trap. New type valve disc, seal is very reliable. Steam insulation device, high efficiency and energy saving.

F11 F22 High temperature steam trap can quickly discharge the air and cold condensate when the equipment starts, with big displacement and small steam leakage rate. Strong corrosion resistance. Reliable action, durable. Within the range of working pressure, without adjustment, energy saving. F11 F22 High temperature steam trap is widely used in chemical, petrochemical, petroleum, paper, mining, power, food, pharmaceutical, mechanical equipment supporting, electronic industry and other steam fields.

F11 F22 High temperature steam trap feature:
1.Automatic blowoff mechanism is installed inside the valve. It is a new-type crown valve plate with reliable sealing,and steam heat preservation mechanism with hign-efficiency energy conservation.
2.Rapid air and condensate water exhaust while starting the equipment,great displacement and small steam leakage.
3.Strong anticorrosion,reliable operation and durability.
4.Free of adjustment and remarkable energy-saving result within the working pressure.

F11 F22 High temperature steam trap specification:
Product Name:
F11 F22 High temperature steam trap
Pressure Rating: 1.6-42.0 Mpa,Class 150- Class 2500
Nominal Diameter: DN15-50 mm.
Body Material: cast steel,Stainless Steel,Alloy Steel.
Standard Flanges: DIN, ANSI, JIS, JB79.
Standard Screws:NPT,BSP.
Stand Welding:Socket Welded.

F11 F22 High temperature steam trap performance:
Maximum Working Temperature  ℃                F11:540 / F22:570
Maximum Pressure Differential(Mpa) 15.0
Minimum Pressure Differential(Mpa) 0.3
