Stainless steel Y type filter

Stainless steel Y type filterStainless steel Y type filter
Stainless steel Y type filter

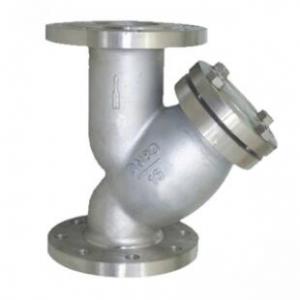

Stainless steel Y type filter Product introduction

 Stainless steel Y type filter is a small device that removes a small amount of solid particles in the liquid, Stainless steel Y type filter can protect the normal operation of the device. When the fluid enters stainless steel Y type filter cartridge with a specification filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet When cleaning is needed, just take out the detachable filter cartridge and reinstall it after treatment. Therefore, it is convenient to use and maintain.

Stainless steel Y type filter also known as decontamination device and filter valve, is an indispensable device in the pipeline system of conveying medium. Its function is to filter mechanical impurities in the medium. It can treat the rust, sand, and a small amount of solid Particles, etc. are filtered to protect the fittings on the equipment pipeline from wear and blockage, which can protect the normal operation of the equipment.
Stainless steel Y type filter has the characteristics of structure, low resistance and convenient sewage discharge.

Stainless steel Y type filter technical parameters
1. Shell material: carbon steel, stainless steel (SUS304, SUS304L, SUS316, SUS316L), fluorine-lined, etc..
2. The material of the filter element of the coarse filter: the filter frame and the filter screen are all stainless steel.
3. Working temperature: carbon steel: -40~380℃, stainless steel: -80~450℃.


Stainless steel Y type filter working principle

Stainless steel Y type filter is medium pipeline system is indispensable to a device, usually installed in a reducing valve, relief valve, water valve and other hydraulic control valve inlet side or other equipment, used to remove particulate impurities from the media, from impurities, rust, welding scraps for the pipe plugging and damage, so as to avoid the maintenance cost and production loss, Protect the normal use of valves and other equipment.

Stainless steel Y type filter filter adopts stainless steel double mesh structure, durable, with advanced structure, small flow resistance, convenient sewage and other characteristics, can be used for water, steam, oil, nitric acid, urea, oxidizing media and other media. When cleaning is needed, as long as the detachable filter cartridge is removed, after removing the filtered impurities, it can be reloaded, the use and maintenance is very convenient. Filter mesh can be set according to user needs. Generally, the water network is 18-30 mesh, the ventilation network is 40-100 mesh, and the oil network is 100-480 mesh. Y-type filter has small shape, fine filter eye, small resistance, fast flow, small pressure loss, convenient installation and maintenance, low cost, strong anti-fouling, short sewage discharge time, convenient slag discharge. Y type filter can also be formed with expansion joint Y type tie rod expansion filter with adjustable mounting length.

Stainless steel Y type filter Related Products

Previous:Brass Y type strainer

Next:Carbon steel Y type strainer
