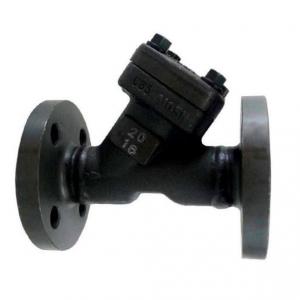

Flange End Forged A105 Y Strainer

Flange End Forged A105 Y StrainerFlange End Forged A105 Y Strainer
Flange End Forged A105 Y Strainer

Flange End Forged A105 Y Strainer Product introduction

 Flange End Forged A105 Y Strainer manufacturer, factory and supplier. Flange End Forged A105 Y Strainer main part of all made of forged steel materials, such as :A105, F22, F304, F304L, F316, F316L, nominal pressure 1.6-25MPa (150-2500LB), nominal diameter 15-50mm (½"-2"), Flange type of this kind of filter is welded through the shell and flange, compared with the casting Y type filter, the biggest feature of the product is that there will be no handling collision and casting sand holes brought by the external leakage phenomenon, Flange End Forged A105 Y Strainer is an important working field and important equipment commonly used filter.

Flange End Forged A105 Y Strainer Specifications:
Design and Manufacture: API602, BS5352
Size: 1/2"-2" (DN15 ~ DN50)
Pressure Class: PN16-PN420, 150Lb-2500Lb
Material: A105. LF2, F5, F11, F22, F304/L, F316/L, F347, F321 F51
End: Flanged, or SW, BW, Threaded.

Flange End Forged A105 Y Strainer Related Products
