Basket strainer/basket filter

Basket strainer/basket filterBasket strainer/basket filter
Basket strainer/basket filter

Basket strainer/basket filter Product introduction

China basket strainer manufacturer, factory and supplier. Basket strainer is generally used where high flow capacity is required. The basket Strainer is serviced by removing the cover, which yields access to the basket. Basket Strainers are also available in a duplex style which consists of two parallel basket Strainers and diverting valves, which permit diversion of the flow through one of the Strainer elements while the other element is being serviced-an essential feature where flow cannot be interrupted.

Basket strainer feature:

Choice of basket filter elements
Single cylinder design
Double cylinder design
Multi-cylinder design
Pleated element design available for low-pressure drop & high dirt hold
Large-area, heavy – duty baskets
Low-pressure drops
Carbon Steel, or Stainless Steel (304 Or 316) housing
Easy to clean
Liquid displacers for easier servicing
Normally designed for free flow area through screen, 4 – 6 times pipe flow area
Covers are O-ring sealed
All housings made from SS 316 L, SS 316 & SS304 are mirror polished to resist adhesion of dirt and scale
Carbon steel housing are painted coated externally & internally epoxy coated
Option of backwashing
Filtration rating available from 5 Micron to 2000 micron
ASME code stamp available
High-pressure rating design available
Flow rate up to 2000 m3/hr
Duplex / Triplex & Jacketed units available
High temperature & high-pressure design are available
Housing are permanently piped

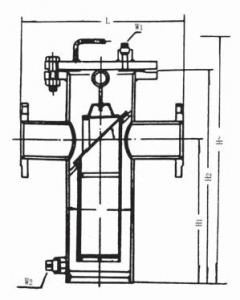

Basket strainer/basket filter Main dimension

DN
Dimension
Discharge□“B”

Weight(kg)
φ
L
H1
H2
H
25
76
220
160
260
480
R1/2"
12
32
76
220
165
270
495
16
40
114
280
180
300
550
23
50
114
280
180
300
550
28
65
140
330
220
350
650
48
80
168
340
260
400
740
65
100
219
420
310
470
880
R3/4"
126
150
273
500
430
620
1175
248
200
325
560
530
780
1875
292
250
426
660
640
930
2170
415
300
478
750
840
1200
2690
596
