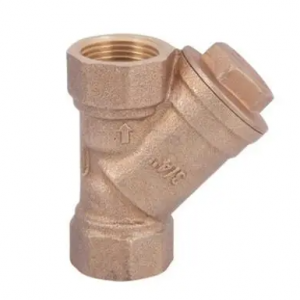

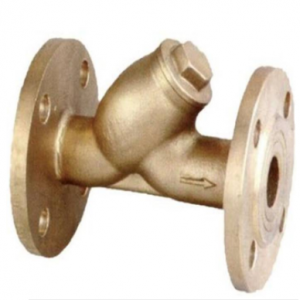

Bronze seawater marine filter strainer

Bronze seawater marine filter strainerBronze seawater marine filter strainer
Bronze seawater marine filter strainer

Bronze seawater marine filter strainer Product introduction

 Bronze seawater marine filter strainer is an indispensable device for conveying medium pipelines in sea water marine application, Bronze seawater marine filter strainer is usually installed in the pressure relief valve, relief valve, water level valve or other equipment at the inlet end, used to remove impurities in the medium, in order to protect the normal use of the valve and equipment.After when the fluid enters the filter cylinder that has certain specification filter net, its impurity is blocked, and clean filtrate is discharged by filter outlet, when need is cleaned, want to take out removable filter net only, after processing, reload can, accordingly, use maintenance is very convenient

 Bronze seawater marine filter strainer parameter

Technology data sheet
Connection                      Threaded or Flange ends
Thread ASME B16.5,EN 1092,BS 4504,BS 10
Body material Brass,Bronze,Ductole Iron,Carbon steel,Stainless Steel
Norminal Diameter 1/2"~2",DN15~DN50,can be customized
Working Medium Water,Non-causticity liquid,Saturated steam
Working Temperature 0℃≤T≤150℃
Pressure 1.0Mpa,1.6Mpa,2.5Mpa,4.0Mpa


 Bronze seawater marine filter strainer material

Main parts and Materials
Number Part Name                 Material
1 Body Bronze or others
2 Plug Bronze or others
3 Cover Bronze or others
4 Bolt Carbon steel
6 Screen Stainless steel
