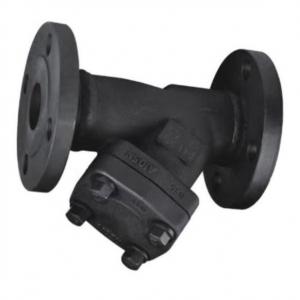

Forged steel Y type strainer

Forged steel Y type strainerForged steel Y type strainer
Forged steel Y type strainer

Forged steel Y type strainer Product introduction

 Forged steel Y type strainer is composed of A105,F304,F316,F11,F22 forged steel,forged steel Y type straineris medium pipeline system is indispensable to a device, usually installed in a reducing valve, relief valve, water valve and other hydraulic control valve inlet side or other equipment, used to remove particulate impurities from the media, from impurities, rust, welding scraps for the pipe plugging and damage, so as to avoid the maintenance cost and production loss, Protect the normal use of valves and other equipment.

Forged steel Y type strainer filter adopts stainless steel double mesh structure, durable, with advanced structure, small flow resistance, convenient sewage and other characteristics, can be used for water, steam, oil, nitric acid, urea, oxidizing media and other media. When cleaning is needed, as long as the detachable filter cartridge is removed, after removing the filtered impurities, it can be reloaded, the use and maintenance is very convenient. Filter mesh can be set according to user needs. Generally, the water network is 18-30 mesh, the ventilation network is 40-100 mesh, and the oil network is 100-480 mesh. Forged steel Y type strainer has small shape, fine filter eye, small resistance, fast flow, small pressure loss, convenient installation and maintenance, low cost, strong anti-fouling, short sewage discharge time, convenient slag discharge. Forged steel Y type strainer can also be formed with expansion joint Y type tie rod expansion filter with adjustable mounting length.

Forged steel Y type strainer specification:

1. Design
API602, ANSI B16.34, BS5352, GB/T12224, GB/T12228, GB/T12234
2. Socket Welding End
ANSI B16.11, JB/T175-95
3. Screw End
ANSI B1.20.1(NPT), GB/T7306-87(RC)
4. Butt Welding End
ANSI B16.25, GB/T12224
5. Flange End
ANSI B16.5, JB/T82.1″82.4-49
6. Face to Face of Flaned Valves
ANSI B16.10.JB/T97-95
7. Construction
Bolted Bonnet(BB)/Welded Bonnet(WB)
8. Inspect & Test
API598, GB/T13927, JB/T9092
9. Body Materials
A105, LF2, F5, F11, F22, F304, F316, F304L,etc. and Monel, Alloy20
