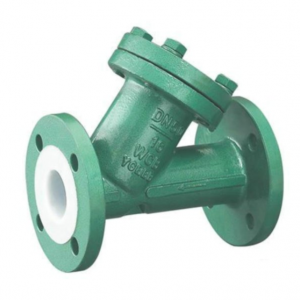

GL41F4 Fully PTFE Lind Y Type Filter

GL41F4 Fully PTFE Lind Y Type FilterGL41F4 Fully PTFE Lind Y Type Filter
GL41F4 Fully PTFE Lind Y Type Filter

GL41F4 Fully PTFE Lind Y Type Filter Product introduction

 GL41F4 Fully PTFE Lind Y Type Filter is basically the same as the commonly used Y-type filter in structure, appearance and function. GL41F4 Fully PTFE Lind Y Type Filter can be used in almost all mediums such as strong acids, strong bases, salts, strong oxidants and organic solvents.GL41F4 Fully PTFE Lind Y Type Filter is widely used in various corrosive pipelines to remove impurities in corrosive media and protect the normal operation of pumps, valves and other equipment. When the corrosive fluid passes through the filter screen, solid impurity particles It is blocked in the filter screen, and the clean medium passes through the filter screen and enters the instruments, valves, machinery and equipment at the back end of the filter so that it can work and operate normally, achieve stable process requirements, and ensure the role of safe production.

GL41F4 Fully PTFE Lind Y Type Filter is an indispensable filter device for the pipeline system that conveys the medium. One end is to allow fluids such as water to pass through, and the other end is to precipitate waste and impurities. Usually it is installed in the pressure reducing valve, pressure relief valve, fixed The inlet end of the water level valve or other equipment, its function is to remove impurities in the water to protect the normal operation of the valve and equipment.

GL41F4 Fully PTFE Lind Y Type Filter is usually installed at the inlet end of the pressure reducing valve, pressure relief valve, positioning water level valve or other equipment to remove impurities in the medium to protect the normal use of the valve and equipment. The Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge. The suitable medium of Y-type filter can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh.


GL41F4 Fully PTFE Lind Y Type Filter material:

Serial number Part Name Material name
1 Shell HT250 WCB CF8 CF3 CF8M CF3M
2 Flange cover HT250 WCB CF8 CF3 CF8M CF3M
3 Filter PTFE/F4 (polytetrafluoroethylene), FEP/F46 (polyperfluoroethylene propylene)
4 Bolt 35 35 1Cr17Ni2 1Cr18Ni9 1Cr17Ni2 1Cr18Ni9
5 Nut 45 45 0Cr18Ni9 0Cr18Ni9 0Cr18Ni9 0Cr18Ni9
6 Lining layer FEP/F46 (polyperfluoroethylene propylene), PCTFE/F3 (polychlorotrifluoroethylene), PTFE/F4 (polytetrafluoroethylene), PO (polyolefin)


GL41F4 Fully PTFE Lind Y Type Filter parameter:
Nominal pressure PN (MPa) 0.6 1.0 1.6 2.5 2.0
Shell test pressure (MPa) 0.9 1.5 2.4 3.75 3.0
High pressure liquid seal test pressure (MPa) 0.66 1.1 1.76 2.75 2.2
Low pressure gas seal test pressure (MPa) 0.6 0.6 0.6 0.6 0.6
Filtration accuracy 10-100 mesh
Flange standard GB/T 17241.6-2008, GB/T 9112-2010, HG/T 20592-2009, HG/T 20615-2009, etc.
