F304 F304L F316 Y strainer filter valve

F304 F304L F316 Y strainer filter valveF304 F304L F316 Y strainer filter valve
F304 F304L F316 Y strainer filter valve

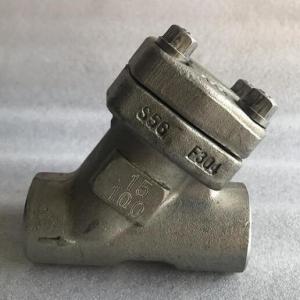

F304 F304L F316 Y strainer filter valve Product introduction

 F304 F304L F316 Y strainer filter valve manufacturer, factory and supplier. F304 F304L F316 Y strainer filter valve is a threaded, butt welding, socket welding or flange connection, the main part of all made of forged steel materials, such as :A105, F22, F304, F304L, F316, F316L, nominal pressure 1.6-25MPa (150-2500LB), nominal diameter 15-50mm (½"-2"), Flange type of this kind of filter is welded through the shell and flange, compared with the casting Y type filter, the biggest feature of the product is that there will be no handling collision and casting sand holes brought by the external leakage phenomenon, F304 F304L F316 Y strainer filter valve is an important working field and important equipment commonly used filter.

F304
F304L F316 Y strainer filter valve Specifications:
Design and Manufacture: API602, BS5352
Size: 1/2"-2" (DN15 ~ DN50)
Pressure Class: PN16-PN420, 150Lb-2500Lb
Material: A105. LF2, F5, F11, F22, F304/L, F316/L, F347, F321 F51
End: Flanged, SW, BW, Threaded.

F304 F304L F316 Y strainer filter valve Related Products

Previous:High pressure forged steel Y type filter strainer

Next:Forged steel A105 Y strainer filter
