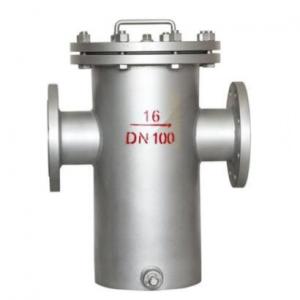

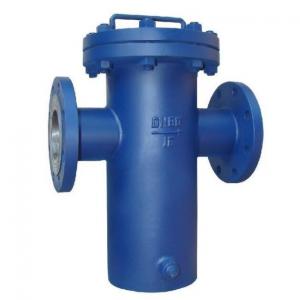

Carbon steel basket strainer

Carbon steel basket strainerCarbon steel basket strainer
Carbon steel basket strainer

Carbon steel basket strainer Product introduction

 China basket strainer manufacturer, factory and supplier. Carbon steel basket strainer is mainly composed of nozzle, main pipe, filter basket, flange, flange cover and fastener. When the liquid enters into carbon steel basket strainer basket through the main pipe, the solid impurity particles are blocked in the filter basket, and the clean fluid passes through the carbon steel basket strainerbasket and is discharged by the filter outlet. When it is necessary to clean, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and reload it after cleaning. Therefore, it is very convenient to use and maintain.

Carbon steel basket strainer is generally used where high flow capacity is required. The basket Strainer is serviced by removing the cover, which yields access to the basket. Basket Strainers are also available in a duplex style which consists of two parallel basket Strainers and diverting valves, which permit diversion of the flow through one of the Strainer elements while the other element is being serviced-an essential feature where flow cannot be interrupted.

Carbon steel basket strainer feature:

Choice of basket filter elements
Single cylinder design
Double cylinder design
Multi-cylinder design
Pleated element design available for low-pressure drop & high dirt hold
Large-area, heavy – duty baskets
Low-pressure drops
Carbon Steel, or Stainless Steel (304 Or 316) housing
Easy to clean
Liquid displacers for easier servicing
Normally designed for free flow area through screen, 4 – 6 times pipe flow area
Covers are O-ring sealed
All housings made from SS 316 L, SS 316 & SS304 are mirror polished to resist adhesion of dirt and scale
Carbon steel housing are painted coated externally & internally epoxy coated
Option of backwashing
Filtration rating available from 5 Micron to 2000 micron
ASME code stamp available
High-pressure rating design available
Flow rate up to 2000 m3/hr
Duplex / Triplex & Jacketed units available
High temperature & high-pressure design are available
Housing are permanently piped
