Stainless Steel Flange End Y Type Strainer

Stainless Steel Flange End Y Type StrainerStainless Steel Flange End Y Type Strainer
Stainless Steel Flange End Y Type Strainer

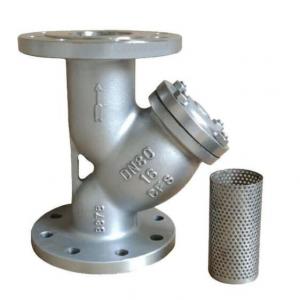

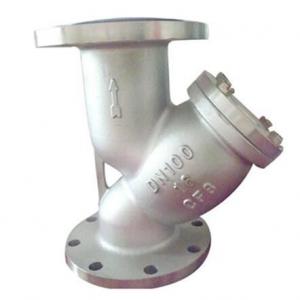

Stainless Steel Flange End Y Type Strainer Product introduction

 China Stainless Steel Y type strainer, Y type filter manufacturer, factory and supplier. Stainless Steel Flange End Y Type Strainer is a small device that removes a small amount of solid particles in the liquid, Stainless Steel Flange End Y Type Strainercan protect the normal operation of the device. When the fluid enters Y strainer cartridge with a specification filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet When cleaning is needed, just take out the detachable filter cartridge and reinstall it after treatment. Therefore, it is convenient to use and maintain.

Stainless Steel Flange End Y Type Strainer also known as decontamination device and filter valve, is an indispensable device in the pipeline system of conveying medium. Its function is to filter mechanical impurities in the medium. It can treat the rust, sand, and a small amount of solid Particles, etc. are filtered to protect the fittings on the equipment pipeline from wear and blockage, which can protect the normal operation of the equipment.
Stainless Steel Flange End Y Type Strainer has the characteristics of structure, low resistance and convenient sewage discharge.

Stainless Steel Flange End Y Type Strainer technical parameters
1. Shell material: carbon steel, stainless steel (SUS304, SUS304L, SUS316, SUS316L), fluorine-lined, etc..
2. The material of the filter element of the coarse filter: the filter frame and the filter screen are all stainless steel..
3 Working temperature: carbon steel: -40~380℃, stainless steel: -80~450℃.

Stainless Steel Flange End Y Type Strainer Related Products

Previous:304 316 Stainless steel basket strainer

Next:Class 1500 2500 High Pressure Y Filter
