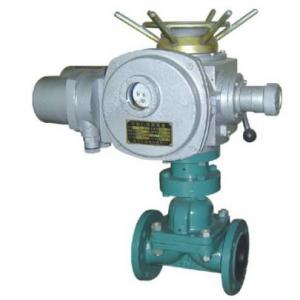

G941J-10 Electric diaphragm valve

G941J-10 Electric diaphragm valve Product introduction

G941J-10 Electric diaphragm valve is a type of diaphragm valve that is operated electric actuator to either start or stop fluid flow. G941J-10 Electric diaphragm valve manufacturers produce various types of these diaphragm valves which include straight-through diaphragm valve, weir type diaphragm valve, plastic diaphragm valve, sanitary diaphragm valve, and hygienic diaphragm valve.

Applications of G941J-10 Electric diaphragm valve include foods and beverages, chemical processing, paper and pulp, pharmaceuticals, and water supply among others. Advantages of G941J-10 Electric diaphragm valve are simple and compact design, cheaper, easy to clean and repair, versatile, free from leakage, and bi-directional fluid flow.

G941J-10 Electric diaphragm valve Technical parameters

G941J-10 Electric diaphragm valve
1.Type: G491J-10 G941J-16
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

G941J-10 Electric diaphragm valve Main part material

NO.	Part name	Material
1	Body	cast iron/WCB/304/316
2	Seals	Expanded Graphite
3	Bonnet	cast iron/WCB/304/316
4	Disc	cast iron/WCB/304/316
5	Gland	WCB/304/306
6	Stem	cast iron/WCB/304/316
7	Handle	cast iron

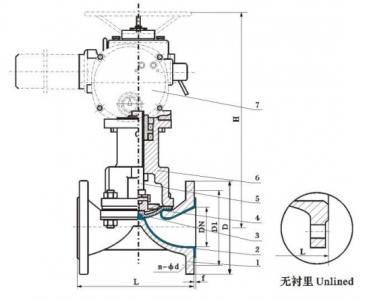

G941J-10 Electric diaphragm valve Main dimension

Size		L	D	D1	D2	f	b	Z-φd	D	D1	D2	f	b	Z-φd
DN(mm)	NPS(inch)	L	PN1.0MPa						PN1.6MPa
15	1/2	125	80	55	40	2	12	4-φ12	95	65	45	2	14	4-φ14
20	3/4	135	90	65	50	2	14	4-φ12	105	75	55	2	16	4-φ14
25	1	145	100	75	60	2	14	4-φ12	115	85	65	2	16	4-φ14
32	5/4	160	120	90	70	2	16	4-φ14	135	100	78	2	18	4-φ18
40	3/2	180	130	100	80	3	16	4-φ14	145	110	85	3	18	4-φ18
50	2	210	140	110	90	3	16	4-φ14	160	125	100	3	20	4-φ18
65	5/2	250	160	130	110	3	16	4-φ14	180	145	120	3	20	4-φ18
80	3	300	185	150	125	3	18	4-φ18	195	160	135	3	22	4-φ18
100	4	350	205	170	145	3	18	4-φ18	215	180	155	3	22	8-φ18
125	5	400	235	200	175	3	20	8-φ18	245	210	185	3	24	8-φ18
150	6	460	260	225	200	3	20	8-φ18	280	240	210	3	24	8-φ23
200	8	570	315	280	255	3	22	8-φ18	335	295	265	3	26	8-φ23
250	10	680	370	335	310	3	24	12-φ28	390	350	320	3	28	12-φ23
300	12	790	435	395	362	4	24	12-φ23	440	400	368	4	28	12-φ23
