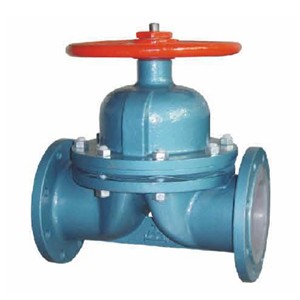

G41J-10 Rubber lined diaphragm valve

G41J-10 Rubber lined diaphragm valveG41J-10 Rubber lined diaphragm valve
G41J-10 Rubber lined diaphragm valve

G41J-10 Rubber lined diaphragm valve Product introduction

G41J-10 Rubber lined diaphragm valve is a type of diaphragm valve that is only operated by applying torque on the handwheel. G41J-10 Rubber lined diaphragm valve operates when the diaphragm valve operator applies a torque on the handwheel to either start or stop fluid flow. The start of fluid flow through a manual diaphragm valve starts when the handwheel is rotated in the clockwise direction forcing the stem and compressor to move upwards. This then forces the diaphragm to move upwards and this leaves the diaphragm valve open for fluid to flow. To stop G41J-10 Rubber lined diaphragm valve, the handwheel is then rotated in the anticlockwise direction forcing the diaphragm to create a tight seal with the body and thus blocking any fluid flow.

G41J-10 Rubber lined diaphragm valve manufacturers produce various types of these diaphragm valves which include straight-through manual diaphragm valves, weir type manual diaphragm valves, plastic manual diaphragm valves, sanitary manual diaphragm valves, and hygienic manual diaphragm valves among others.

Applications of G41J-10 Rubber lined diaphragm valve include foods and beverages, chemical processing, paper and pulp, pharmaceuticals, and water supply among others. Advantages of G41J-10 Rubber lined diaphragm valve are simple and compact design, cheaper, easy to clean and repair, versatile, free from leakage, and bi-directional fluid flow.

G41J-10 Rubber lined diaphragm valve Technical parameters

G41J-10 Rubber lined diaphragm valve
1.Type: G41J-10  G41J-16
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

G41J-10 Rubber lined diaphragm valve Main part material

NO. Part name           Material
1 Body cast iron/WCB/304/316
2 Seals Expanded Graphite
3 Bonnet cast iron/WCB/304/316
4 Disc cast iron/WCB/304/316
5 Gland WCB/304/306
6 Stem cast iron/WCB/304/316
7 Handle cast iron

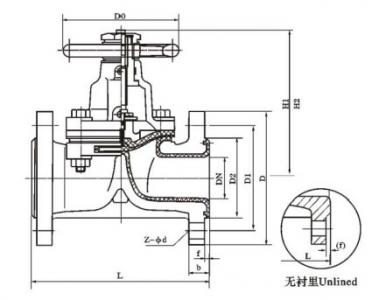

G41J-10 Rubber lined diaphragm valve Main dimension

Size L D D1 D2 f b Z-φd D D1 D2 f b Z-φd
DN(mm) NPS(inch) PN1.0MPa PN1.6MPa
15 1/2 125 80 55 40 2 12 4-φ12 95 65 45 2 14 4-φ14
20 3/4 135 90 65 50 2 14 4-φ12 105 75 55 2 16 4-φ14
25 1 145 100 75 60 2 14 4-φ12 115 85 65 2 16 4-φ14
32 5/4 160 120 90 70 2 16 4-φ14 135 100 78 2 18 4-φ18
40 3/2 180 130 100 80 3 16 4-φ14 145 110 85 3 18 4-φ18
50 2 210 140 110 90 3 16 4-φ14 160 125 100 3 20 4-φ18
65 5/2 250 160 130 110 3 16 4-φ14 180 145 120 3 20 4-φ18
80 3 300 185 150 125 3 18 4-φ18 195 160 135 3 22 4-φ18
100 4 350 205 170 145 3 18 4-φ18 215 180 155 3 22 8-φ18
125 5 400 235 200 175 3 20 8-φ18 245 210 185 3 24 8-φ18
150 6 460 260 225 200 3 20 8-φ18 280 240 210 3 24 8-φ23
200 8 570 315 280 255 3 22 8-φ18 335 295 265 3 26 8-φ23
250 10 680 370 335 310 3 24 12-φ28 390 350 320 3 28 12-φ23
300 12 790 435 395 362 4 24 12-φ23 440 400 368 4 28 12-φ23
