EG6B41J-10 BS Pneumatic diaphragm valve

EG6B41J-10 BS Pneumatic diaphragm valve Product introduction

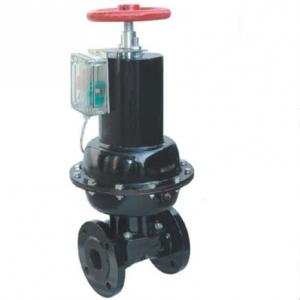

EG6B41J-10 BS Pneumatic diaphragm valve is a type of diaphragm valve with British standard that operates by the use of a normally closed pneumatic actuator. The actuator is responsible for providing the power that is used to operate the diaphragm valve. EG6B41J-10 BS Pneumatic diaphragm valve manufacturers design this valve with an automated system that ensures that the valve can start and stop on its own as required. Pneumatic diaphragm valves work by use of a diaphragm component that works with help of a stem and compressor to create linear vertical motion. This motion is responsible for starting and stopping fluid flow. EG6B41J-10 BS Pneumatic diaphragm valve opens when the diaphragm moves upwards and closes when the diaphragm moves down to create a tight seal with the body.

Applications of EG6B41J-10 BS Pneumatic diaphragm valve include paper and pulp industries, chemical processing, foods and beverages, firefighting, water supply, and wastewater treatment among others. Advantages of EG6B41J-10 BS Pneumatic diaphragm valve are zero leakage, versatile, bi-directional flow, easy repair and cleaning, automatic operation, and simple and compact design.

EG6B41J-10 BS Pneumatic diaphragm valve Technical parameters

EG6B41J-10 BS Pneumatic diaphragm valve
1.Type: EG6B41J-10
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

EG6B41J-10 BS Pneumatic diaphragm valve Main part material

NO.	Part name	Material
1	Body	cast iron/WCB/304/316
2	Seals	Expanded Graphite
3	Bonnet	cast iron/WCB/304/316
4	Disc	cast iron/WCB/304/316
5	Gland	WCB/304/306
6	Stem	cast iron/WCB/304/316
7	Handle	cast iron

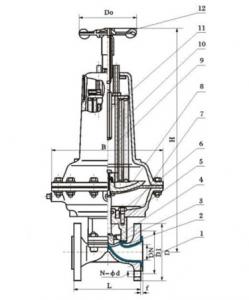

EG6B41J-10 BS Pneumatic diaphragm valve Main dimension

Model	DN（mm）	Dimension（mm）										actuator			Weight （㎏）
		L		f	D1	D	D0	n-d	H	B	ES	（cm3）	Air pressure （MPa）	Air Pipe （in）
		J type	W type	f	D1	D	D0	n-d	H	B	ES	（cm3）	Air pressure （MPa）	Air Pipe （in）
EG6B41WJFS-16	20	121	117	2	75	105	140	4-13．5	343	168	68	163．87	0．3	1/8	6．3
	25	131	127	2	85	115	140	4-13．5	345	168	68	196．65	0．3-0．4	1/8	7．3
	32	150	146	2	100	140	140	4-17．5	363	260	68	229．4	0．3-0．4	1/8	8．3
	40	163	159	2	110	150	140	4-17．5	430	260	69	1458．7	0．3-0．4	1/4	14．3
	50	194	190	2	125	165	140	4-17．5	575	260	70	3162．7	0．3-0．4	1/4	26
EG6B41WJFS-10	65	220	216	2	145	185	140	4-17．5	588	260	70	3243	0．3-0．4	1/4	30．8
	80	258	254	2	160	200	165	8-17．5	769	425	71	6636．8	0．4-0．5	3/8	64．9
	100	309	305	2	180	220	280	8-17．5	816	425	71	6948	0．4-0．5	3/8	70．3
	125	362	356	3	210	250	280	8-17．5	820	425	71	7374．2	0．4-0．5	3/8	80．7
	150	412	406	3	240	285	280	8-22	920	549	72	10652	0．5	3/8	131．2
EG6B41WJFS-6	200	527	521	4	295	340	280	8-22	1010	549	72	16715	0．5	3/8	212
