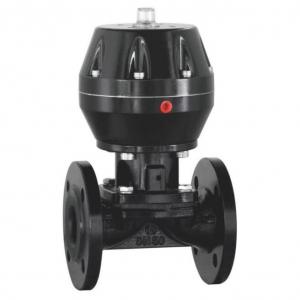

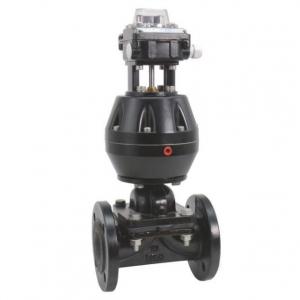

G641J Pneumatic rubber lined diaphragm valve

G641J Pneumatic rubber lined diaphragm valveG641J Pneumatic rubber lined diaphragm valve
G641J Pneumatic rubber lined diaphragm valve

G641J Pneumatic rubber lined diaphragm valve Product introduction

G641J Pneumatic rubber lined diaphragm valve manufacturer, factory and supplier, G641J Pneumatic rubber lined diaphragm valve is specially designed to control non-corrosive or general corrosive media. There is no lining on the inner surface of the valve body or covered with a variety of optional rubber. G641J Pneumatic rubber lined diaphragm valve is suitable for different working temperatures and fluid pipelines.


G641J Pneumatic rubber lined diaphragm valve specification:

Pressure level: PN6 PN10 PN16
Model:G641J-6 G641J-10 G641J-16
Size:DN15-DN600
Medium:Water or weak corrisive medium
Temperature: -9~80 ℃
Pneumatic actuaor: Normally closed or normally open.



G641J Pneumatic rubber lined diaphragm valve Material:

Body: cast iron, ductile iron, carbon steel, stainless steel.

Bonnet: cast iron, ductile iron, carbon steel, stainless steel.

Lining: rubber.

Diaphragm: Rubber

Disc: cast iron and carbon steel.

Cylinder: ductile iron

Piston: carbon steel

Stem: carbon steel

Hand wheel: Cast Iron

Lining layer: EDM test
