G45J-10 Straight through diaphragm valve

G45J-10 Straight through diaphragm valveG45J-10 Straight through diaphragm valve
G45J-10 Straight through diaphragm valve

G45J-10 Straight through diaphragm valve Product introduction

G45J-10 Straight through diaphragm valve designed with a straight flow passage. Unlike other diaphragm valves, G45J-10 Straight through diaphragm valve does not have a raised weir. This design leads to a full-bore valve that enhances excellent performance at the low-pressure drop.
G45J-10 Straight through diaphragm valve manufacturers recommend using this valve for applications prone to dirt, powder, and contaminated media. This is because such media would hardly be clogged in the valve due to the straight nature of the fluid passage. This type of valve is driven manually via a handwheel or by use of actuators. The choice operation (manual or automatic) depends on several factors among them customer preference. G45J-10 Straight through diaphragm valve works by moving a diaphragm up or down to start or stop fluid flow. The diaphragm is usually connected to the handwheel or actuator via a component known as stem. G45J-10 Straight through diaphragm valve can be used in different applications including water supply, foods and beverages, chemical processing, fire hydrants, and petrochemicals among others.


 The automatic versions of Straight through diaphragm valve include pneumatic, electric, and hydraulic straight-through diaphragm valves. Applications of G45J-10 Straight through diaphragm valve include oil refinery, water supply, foods and beverages, paper and pulp, chemical processing, and fire fighting among others. The advantages of G45J-10 Straight through diaphragm valve are bi-directional flow, versatility, zero leakage, easy to clean, repair, and do maintenance, compact and simple design.

G45J-10 Straight through diaphragm valve Technical parameters

G45J-10 Rubber lined diaphragm valve
1.Type: G45J-10  G45J-16
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

G45J-10 Straight through diaphragm valve Main part material

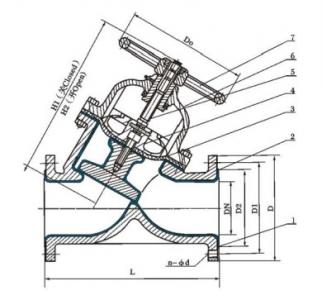

NO. Part name           Material
1 Body cast iron/WCB/304/316
2 Seals Expanded Graphite
3 Bonnet cast iron/WCB/304/316
4 Disc cast iron/WCB/304/316
5 Gland WCB/304/306
6 Stem cast iron/WCB/304/316
7 Handle cast iron
