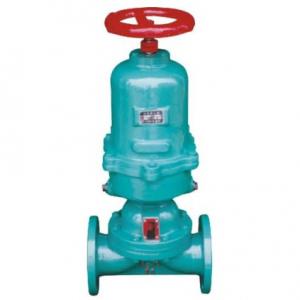

G6B41J-10 Pneumatic diaphragm valve

G6B41J-10 Pneumatic diaphragm valve Product introduction

G6B41J-10 Pneumatic diaphragm valve is a type of diaphragm valve that operates by the use of a normally closed pneumatic actuator. The actuator is responsible for providing the power that is used to operate the diaphragm valve. G6B41J-10 Pneumatic diaphragm valve manufacturers design this valve with an automated system that ensures that the valve can start and stop on its own as required. Pneumatic diaphragm valves work by use of a diaphragm component that works with help of a stem and compressor to create linear vertical motion. This motion is responsible for starting and stopping fluid flow. G6B41J-10 Pneumatic diaphragm valve opens when the diaphragm moves upwards and closes when the diaphragm moves down to create a tight seal with the body.

Applications of G6B41J-10 Pneumatic diaphragm valve include paper and pulp industries, chemical processing, foods and beverages, firefighting, water supply, and wastewater treatment among others. Advantages of using a pneumatic diaphragm valve are zero leakage, versatile, bi-directional flow, easy repair and cleaning, automatic operation, and simple and compact design.

G6B41J-10 Pneumatic diaphragm valve Technical parameters

G6B41J-10 Pneumatic diaphragm valve
1.Type: G6B41J-10
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

G6B41J-10 Pneumatic diaphragm valve Main part material

NO.	Part name	Material
1	Body	cast iron/WCB/304/316
2	Seals	Expanded Graphite
3	Bonnet	cast iron/WCB/304/316
4	Disc	cast iron/WCB/304/316
5	Gland	WCB/304/306
6	Stem	cast iron/WCB/304/316
7	Handle	cast iron

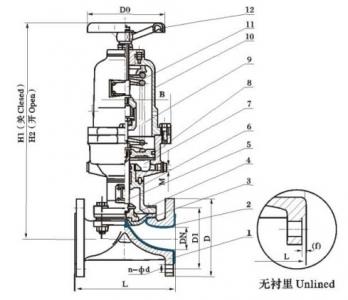

G6B41J-10 Pneumatic diaphragm valve Main dimension
