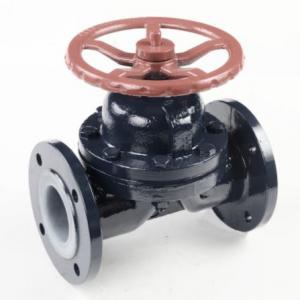

EG46J Straight Through Diaphragm Valve

EG46J Straight Through Diaphragm ValveEG46J Straight Through Diaphragm Valve
EG46J Straight Through Diaphragm Valve

EG46J Straight Through Diaphragm Valve Product introduction

 EG46J Straight Through Diaphragm Valve manufacturer, factory and supplier. EG46J Straight Through Diaphragm Valve is available as BS 5156 short and DIN 3202 F1 long face to face in a wide range of body and lining materials to meet the customers requirements. EG46J Straight Through Diaphragm Valve with a full bore opening to ensure maximum flow when handling viscous or abrasive fluids.

EG46J Straight Through Diaphragm Valve bodies, linings and diaphragms in hundreds of different combinations offer tailored solutions to suit almost any corrosive or abrasive fluid. Because the flowing media does not come into contact with the working components of EG46J Straight Through Diaphragm Valve, total service life is dramatically increased.


EG46J Straight Through Diaphragm Valve Technical Specifications :

1) Size : 15 mm to 600 mm

2) Design Standard : BS EN 13397 : 2002 (BS 5156)

3) Testing Standard : BS EN 12266-1 (BS 6755 Part 1)

4) Material of Construction :
a. Cast Iron (IS 210 Gr. FG 200/220/260)
b. Cast Carbon Steel (ASTM A 216 Gr. WCB)
c. Cast Stainless Steel – SS 304 / SS 304L  (ASTM A 351 Gr.CF8 / CF3)
d. Cast Stainless Steel – SS 316 / SS 316L (ASTM A 351 Gr. CF 8M / CF3M)        e. Duplex Stainless Steel Grade 2205

5) Body Rubber  / Plastic or Fluoropolymer Lining :
Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM

6) Diaphragms :
a. Natural b. Neoprene c. Hypalon d. Butyl e. EPDM f. Silicone

7) Stem or Spindle : AISI 410 / 304 / 316

8) End Connections : BS -10 Table (D, E, & F) , DIN ND 10 & 16, ANSI B 16.5 Class 150
