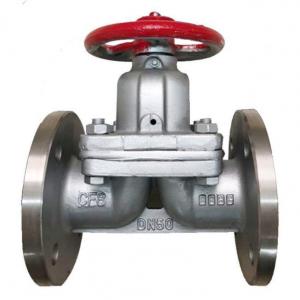

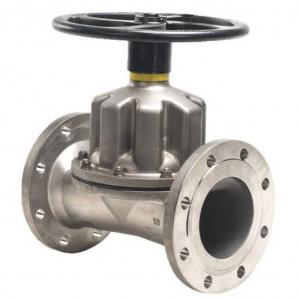

Manual stainless steel diaphragm valve

Manual stainless steel diaphragm valveManual stainless steel diaphragm valve
Manual stainless steel diaphragm valve

Manual stainless steel diaphragm valve Product introduction

 China stainless steel diaphragm valve manufacturer, factory and supplier. Manual stainless steel diaphragm valve is made of 304, 316 stainless steel material with rubber or teflon lined. Manual stainless steel diaphragm valve is designed with a raised weir on the fluid flow passage. The weir on the flow path helps to control diaphragm flexing to a minimum while maintaining streamlined and smooth fluid flow. As such, the diaphragm flexing stress is minimized resulting in longer diaphragm life. Manual stainless steel diaphragm valve operates by moving the diaphragm up to allow fluid flow and when the diaphragm moves downwards it closes.

Manual stainless steel diaphragm valve manufacturers design this valve for use in various applications from general use to specific industrial use. The use of the Rubber lined weir type diaphragm valve depends on the material used to make different parts such as the diaphragm, seals, and even the valve body. The body is mostly made of metallic materials such as carbon steel, stainless steel, and ductile iron. Such materials are very strong and they make the valve very strong against high pressure and impact damage.


Manual stainless steel diaphragm valve specification:

Nominal diameter: DN15-600mm

 Nominal pressure: 0.6-1.6MPa

Operating temperature: ≤80℃ or  ≤150℃ according to the service

Drive mode: manual, worm gear,pneumatic actuator and electric actuator.

Connection mode: internal thread, flange

Manufacturing standards :German DIN, American standard API, ANSI, British standard BS, Japanese JIS, JPI, etc

Body material: stainless steel, 304, 304L, 316, 316L, etc.
