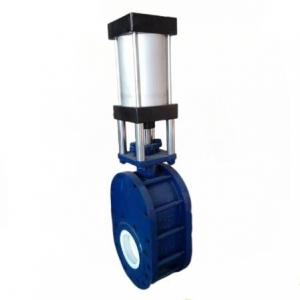

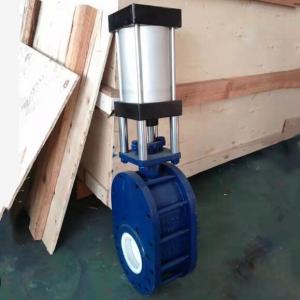

Z674TC Pneumatic Double Disc Ceramic Gate Valve

Z674TC Pneumatic Double Disc Ceramic Gate Valve Product introduction

　Z674TC Pneumatic Double Disc Ceramic Gate Valve manufacturer, factory and supplier in China. Z674TC Pneumatic Double Disc Ceramic Gate Valve is short length compared with Z644TC Pneumatic Ceramic Double Disc Gate Valve,which is equipped with a ceramic liner inside the body, contributing to its exceptional performance in dry ash conveying systems and hopper pumps. This type of valve is especially well-suited for high-abrasion industries, such as mining, papermaking, chemicals, etc. The ability of Z674TC Pneumatic Double Disc Ceramic Gate Valve to withstand high levels of wear and tear makes it a valuable asset in these demanding fields. Moreover, it’s designed to function efficiently at temperatures up to 200℃, further emphasizing its versatility and robustness in various industrial applications.

Z674TC Pneumatic Double Disc Ceramic Gate Valve Specification:

Product Name: Pneumatic Ceramic Double Disc Gate Valve
Model: Z674TC
Size: 2″ ~ 24″
Nominal Pressure: PN10/16, ANSI Class 150LB/300LB
Design and Manufacture: GB/T 12224, ASME B16.34
Face-to-Face Dimension: Manufacturer’s Standard, ASME B16.5 & B16.47
Flange Dimension: JB/T 79.1, ANSI B16.5, DIN 2543, JIS B2020
Inspection and Test: GB/T 9092, ASME B16.34
Material Standard: GB/T 12229 for Carbon Steel, GB/T 12230 for Stainless Steel

Z674TC Pneumatic Double Disc Ceramic Gate Valve Structural Features:

Cylinder Actuator

Utilizes a cylinder to drive the gate up and down, resulting in fast opening/closing.

Double Gates

These adopt floating connections to provide reliable one-way seals. The floating connection helps distribute friction evenly, increasing service life.

Anti-Wear Ceramics

Sealing surfaces are lined with anti-wear ceramics, offering excellent resistance to abrasion.

Compact Design

Easy for transportation, installation, and maintenance.

Z674TC Pneumatic Double Disc Ceramic Gate Valve Main Parts and Material

Body	CF8 /A216Gr. WCB
Disc	CF8 / A216Gr. WCB/Ceramic Lined
Bonnet	CF8 /A216Gr. WCB
Bonnet Gasket	Graphite
Packing	Graphite
Gland	ASTM A276 304
Yoke	ASTM A216 WCB
Outside Screw Rod	ASTM A276 304
Seat	Ceramic Lined
Seat Ring	ASTM A276 304
Seat Ring Seal	Flexible Graphite
Seat Ring Gasket	PTFE
Handwheel	Iron Steel
