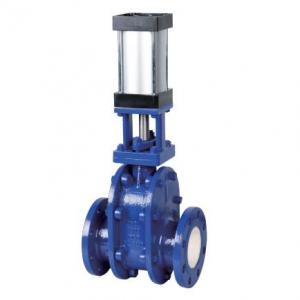

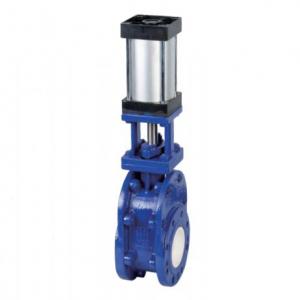

Z644TC Pneumatic ceramic gate valve

Z644TC Pneumatic ceramic gate valveZ644TC Pneumatic ceramic gate valve
Z644TC Pneumatic ceramic gate valve

Z644TC Pneumatic ceramic gate valve Product introduction

 Z644TC Pneumatic ceramic gate valve is applicable to power plant dry ash system and bin pump discharge conveying, Z644TC Pneumatic ceramic gate valve is also suitable for opening and closing pipelines that contain such medium as abrasive dry dust, water, slag water in the fields of mining, paper making and chemical engineering. Nominal pressure is 0.1MPa, adaptive temperature is no more than 200℃ , and air source pressure is 0.6~0.8MPa. Z644TC Pneumatic ceramic gate valve can be fully sealed in any direction. The central part of valve body adopts WCB forged steel part and seamless steel pipe welding. Sealing face adopts hard sealing. Material outlet of this valve is in full flow without any obstacles. Special blockage-blowing device is of good wear-resisting property, sealing property, low start-up load, infrequent ash blockage and encrustation. Z644TC Pneumatic ceramic gate valve adopts high grade toughened structure ceramic sealing, with high mechanical strength, good wear resistance, and long service lifetime. Z644TC Pneumatic ceramic gate valve can be installed at any angles due to its compact structure.


Z644TC Pneumatic ceramic gate valve specification:
Nominal diameter: DN50~1000mm ( 2"-40")
Nominal pressure: PN1.0~4.0MPa(150-300Lb)
Applicable temperature: ≤ 200℃
Material: carbon steel.stainless steel,etc.
Medium: dry ash, pulverized coal ash, and sold granule etc.
Application range: dry ash, pulverized coal ash of control systems in steel plant, power plant,
metallurgy plant etc.


Z644TC Pneumatic ceramic gate valve feature:

1、High strength
The support and opening and closing parts of the Z644TC Pneumatic ceramic gate valve are made of metal, and the sealing pair is a precision-machined structural ceramic. The flat contact sealing form is used to make a straight stroke movement, with large shearing force and high strength.

2、Easy to maintain
Z644TC Pneumatic ceramic gate valve  adopts a three-stage structure, which is easy to install and disassemble. The internal cavity of the valve is designed with a purge function to prevent blockage.

3、Good sealing
The sealing of the Z644TC Pneumatic ceramic gate valve adopts a spring-compensated self-sealing structure, which can maintain the sealing performance for a long time.

4、High cost performance
Z644TC Pneumatic ceramic gate valve has better performance than ordinary gate valves under dry powder conveying conditions without corrosion and cleanliness requirements, and its price is close to that of ordinary gate valves, with high cost performance.



Z644TC Pneumatic ceramic gate valve application areas:

Power plant

Ash removal system, feeding, fly ash transportation

Concentrator

Mineral powder material transportation

Cement plant

Powder conveying

Others

Other powder, dry powder conveying conditions without corrosion and cleanliness requirements


Applicable medium: slurry, pulverized coal, medium containing particulate matter.
