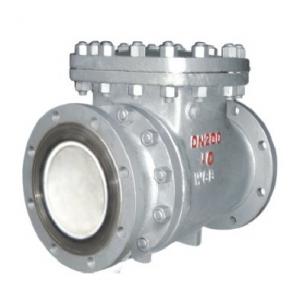

Ceramic lined check valve

Ceramic lined check valve Product introduction

Ceramic lined check valve Product features
Ceramic lined check valve is applicable to power plant dry ash system and bin pump discharge conveying, and ceramic lined check valve is also suitable for opening and closing pipelines that contain such medium as abrasive dry dust, water, slag water in the fields of mining, paper making and chemical engineering. Nominal pressure is 0.1MPa, adaptive temperature is no more than 200℃ , and air source pressure is 0.6~0.8MPa.

Ceramic lined check valve specification

Nominal diameter: DN50~600mm ( 2"-40")

Nominal pressure: PN1.0~4.0MPa(150-300Lb)

Applicable temperature: ≤ 200℃

Material： carbon steel.stainless steel,etc.

Medium: dry ash, pulverized coal ash, and sold granule etc.

Application range: dry ash, pulverized coal ash of control systems in steel plant, power plant,

metallurgy plant etc.
