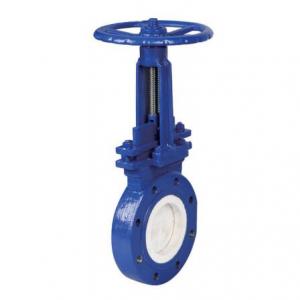

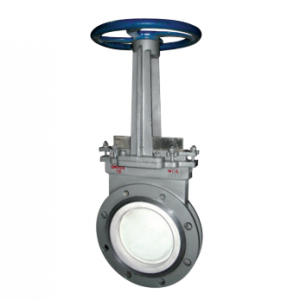

China ceramic knife gate valve

China ceramic knife gate valveChina ceramic knife gate valve
China ceramic knife gate valve

China ceramic knife gate valve Product introduction

 China ceramic knife gate valve manufacturer, factory and supplier,ceramic knife gate valve is applicable to opening and closing pipelines that contain such medium as highly hard granules, like slag water, or corrosive soft granules.Ceramic knife gate valve Nominal pressure is 0.1MPa, and adaptive temperature is no more than 150℃. Sealing face adopts hard sealing, and the parts that touch medium are all structural ceramic materials with good chemical stability and high hardness. Therefore, Ceramic knife gate valve has good resistance to wear, corrosion and scouring. And it has good heat insulation property and slight thermal expansion. Material outlet of this valve is in full flow without any obstacles, with strong abrasive resistance, good sealing property, low start-up load, infrequent ash blockage and encrustation. Ceramic lined knife gate valve adopts high grade toughened structure ceramic sealing, with high mechanical strength, good wear resistance, and long service lifetime. It can be installed at any angles due to its compact structure.

China ceramic knife gate valve Specification:
Nominal diameter: DN50~1000mm ( 2"~40")
Nominal pressure: PN1.0~2.5MPa(150~300Lb)
Applicable temperature:≤ 200℃
Material: carbon steel.stainless steel, etc.
Medium: coal dressing, coal ore, ore pulp, coal slag and solid granule etc.
Application range: metallurgy, mining, power, coal conveying plant, cement plant, coal dressing plant etc.

China ceramic knife gate valve Related Products

Previous:Double disc ceramic lined gate valve

Next:China ceramic lined butterfly valve
