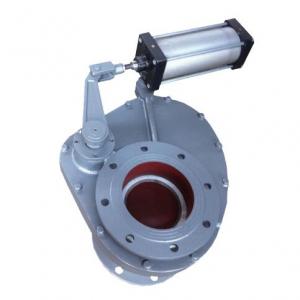

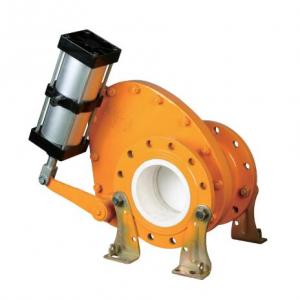

Pneumatic swing disc ceramic feed valve Product introduction

Pneumatic swing disc ceramic feed valve adopts a high-grade toughened structural ceramic seal.Pneumatic swing disc ceramic feed valvewith high mechanical strength, strong abrasion resistance, a long service life and a compact structure, which can be installed at any angle.

Pneumatic swing disc ceramic feed valve can replace dome valve, tuming valve,bel valve and double-disc valve as feeding gates of storehouse pumps, Pneumatic swing disc ceramic feed valve can be used as an on-off for pipelines containing abrasive dry ash, water granulated slag and the like in mines. Chemical engineering and soon, Its working nominal pressure is 1.0MPa applicable temperature, applicable temperature≤200℃,and airsupply pressure 0.6-0.8MPa.

After the pneumatic swing disc ceramic feed valve is closed, it’s fully sealed in any direction. Its body and bonnet are made of WCB steel or stainless steel casting, Its sealing surface adopts a hard serling element, pneumatic swing disc ceramic feed valve feed inlet is fully through without any biocks, and it has an anti -blockage blowing unit, with strong abrasion resistance, a good seal ability, a small starting load and with little ash seizure or accumulation.

　Pneumatic swing disc ceramic feed valve specification:
Nominal diameter：DN50~1000mm ( 2"~40")

Nominal pressure：PN1.0~4.0MPa(150~300Lb)

Applicable temperature：≤ 250℃

Material：carbon steel

Medium: dry ash, pulverized coal ash, and sold granule etc.

Application range: starting and shutting of ash, slag discharge in dry ash system of coal fired power plant, and mining, lime factory, cement factory, and chemical plant etc.
