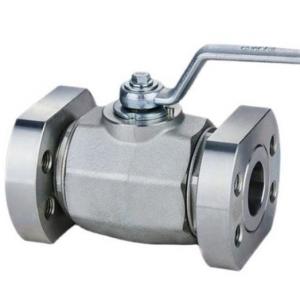

SAE Flange High Pressure Ball Valve Product introduction
SAE Flange High Pressure Ball Valve manufacturer, factory and supplier. SAE Flange High Pressure Ball Valve is used for 21Mpa, 31.5Mpa or 42Mpa high pressure medium. SAE Flange High Pressure Ball Valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system. SAE Flange High Pressure Ball Valve is switch fast, convenient, small fluid resistance, is the least of all valves in the fluid resistance as long as the stem rotation 90°, SAE Flange High Pressure Ball Valve to complete the full open or full close action, it is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when SAE Flange High Pressure Ball Valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. SAE Flange High Pressure Ball Valve ve applicable medium: hydraulic oil, water - glycol, other mixed liquids.
Product name: SAE Flange High Pressure Ball Valve
Drive mode: Manual
connection mode: SAE Flange end
Structure: Straight through
seal structure: soft se
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other
SAE Flange High Pressure Ball Valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
