Jacket ball valve

Jacket ball valveJacket ball valve
Jacket ball valve

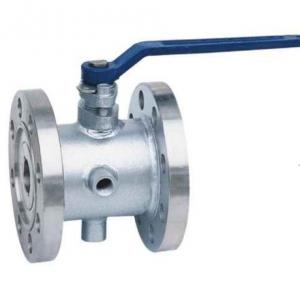

Jacket ball valve Product introduction

Jacket ball valve

Jacket ball valve Technical parameters



Jacket ball valve Main part material

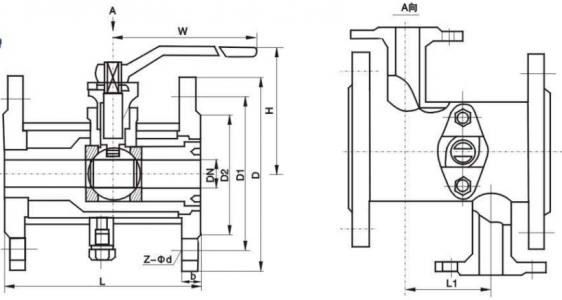

Jacket ball valve Main dimension

DN
d
L
D
E
Q
H
W
Pipe thread
(mm)
(in)
(mm)
(in)
P
20
3/4"
19
117
40
1.5"
58.5
147
101
170
G3/4"
25
1"
25
127
50
2"
62.5
156
106
170
G3/4"
40
1 1/2"
38
165
65
2.5"
63.5
181
125
250
G3/4"
50
2"
51
178
80
3"
68
218
135
250
G3/4"
80
3"
76
229
150
6"
82
275
193
350
G3/4"
100
4"
102
254
200
8"
83
300
265
420
G3/4"
150
6"
152
292
250
10"
95
403
355
800
G3/4"
200
8"
203
330
300
12"
100
492
410
800
G3/4"
