Q941F Flange electric ball valve Product introduction

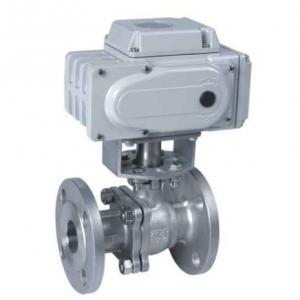

Q941F Flange electric ball valve
Q941F Flange electric ball valve Technical parameters
Q941F Flange electric ball valve Main part material

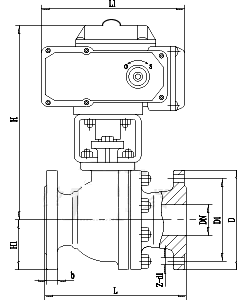

Q941F Flange electric ball valve Main dimension
| Size | Actuator | D1 | D2 | H | L | n-Ф | |
| mm | in | 1.6MPa | 1.6MPa | ||||
| 15 | 1/2″ | HX-5 | 65 | 95 | 246 | 130 | 4-14 |
| 20 | 3/4″ | HX-5 | 75 | 105 | 256 | 140 | 4-14 |
| 25 | 1″ | HX-5 | 85 | 115 | 266 | 150 | 4-14 |
| 32 | 1-1/4″ | HX-5 | 100 | 135 | 286 | 165 | 4-18 |
| 40 | 1-1/2″ | HX-10 | 110 | 145 | 319 | 180 | 4-18 |
| 50 | 2″ | HX-10 | 125 | 160 | 334 | 200 | 4-18 |
| 65 | 1-1/2″ | HX-20 | 145 | 180 | 388 | 220 | 4-18 |
| 80 | 3″ | HX-20 | 160 | 195 | 403 | 250 | 8-18 |
| 100 | 4″ | HX-50 | 180 | 215 | 441 | 280 | 8-18 |
| 125 | 5″ | HX-100 | 210 | 245 | 502 | 320 | 8-18 |
| 150 | 6″ | HX-100 | 240 | 280 | 537 | 360 | 8-23 |
| 200 | 8″ | HX-200 | 295 | 355 | 612 | 400 | 12-23 |
| 250 | 10″ | HX-200 | 355 | 425 | 682 | 450 | 12-25 |
