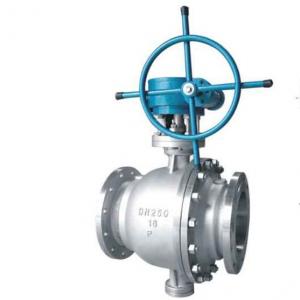

Q347F Trunnion mounted ball valve

Q347F Trunnion mounted ball valve Product introduction

Q347F Trunnion mounted ball valve is 2PC or 3PCS, full bore or reduced ball design. Q347F Trunnion mounted ball valve suitable medium: water, gas, oil, natural gas and caustic medium. Applicable temperature: -196 ~ 350℃, Driving mode: manual, pneumatic, electric, hydraulic, etc.Nominal diameter: DN25-800,1" ~ 32".

Q347F Trunnion mounted ball valve specification:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~32" (DN50~DN800).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

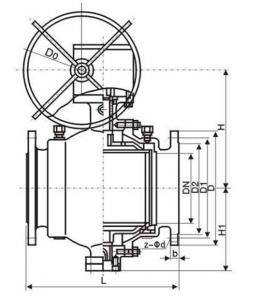

Q347F Trunnion Mounted ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Q347F Trunnion Mounted ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
