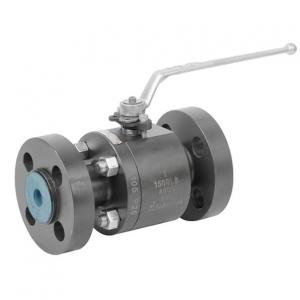

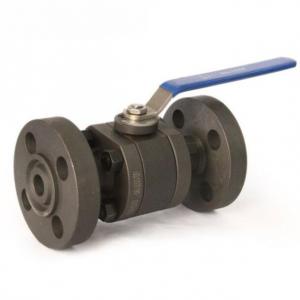

Class 1500 Flanged Forged Ball Valve A105

Class 1500 Flanged Forged Ball Valve A105Class 1500 Flanged Forged Ball Valve A105
Class 1500 Flanged Forged Ball Valve A105

Class 1500 Flanged Forged Ball Valve A105 Product introduction

 Class 1500 Flanged Forged Ball Valve A105 manufacturer, factory and supplier in China, Class 1500 Flanged Forged Ball Valve A105 is 2PC or 3PC, full bore or recuced bore, floating ball structure, Class 1500 Flanged Forged Ball Valve A105 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. Class 1500 Flanged Forged Ball Valve A105 has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.

The driving mode of Class 1500 Flanged Forged Ball Valve A105 can be level type, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-600mm, the material can be forged steel, forged stainless steel.Because of the wide range of use of Class 1500 Flanged Forged Ball Valve A105 in different situations and working conditions have different collocation.

Class 1500 Flanged Forged Ball Valve A105 Specification:

Product Name ASTM A105 Forged steel ball valve
1. Material A105 or F304,F316 etc.
2. Size 1/4~24 inch ( DN10~DN600)
3. Port Full Port or Reduced Port
4. Working Pressure 150LB,300LB,600LB,800LB, or 900LB,1500LB,2500LB
5. Connection Ends Flanged,threaded or welded end
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Class 1500 Flanged Forged Ball Valve A105 features:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
