Q44F Q45F 3 way ball valve Product introduction

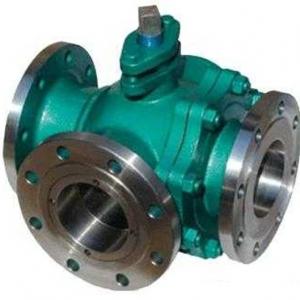

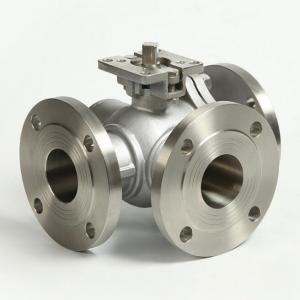

Q44F Q45F 3 way ball valve has L port, T port and Y type structure, which can meet the requirements of different production process. Q44F Q45F 3 way ball valve has three entrances and exits, which are connected with three pipes for the merging, diverging and reversing of fluids. According to the operation,pneumatic and electric 3 way ball valve is optional. Q44F Q45F 3 way ball valve is mainly used to cut off, distribute and change the flow direction of medium in pipeline.3 way ball valve is widely used in petroleum, chemical industry, urban water supply and drainage and other conditions requiring strict cut-off.

L port 3 way ball valve can switch the medium flow direction in two of the three pipelines, and also connect or close the two channels that are perpendicular to each other;T port 3 way ball valve can not only realize the switch of medium flow direction, but also make the three channels connected to each other, at the same time, it can also close any channel, make the other two channels connected, flexible control of the confluence or diversion of the pipeline intermediary;Y type 3 way ball valve has a mutual Angle of 120° and 135°, according to the need to achieve the medium flow direction switch, it is perpendicular to the two channels tee ball valve flow resistance is smaller.



Q44F Q45F 3 way ball valve specification:
1. Working pressure: 1.6Mpa-42.0Mpa,150LB-2500LB.
2. Operating temperature: -196~+650℃
3. Driving mode: manual, worm wheel, pneumatic and electric.
4. Connection mode: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp.
5. Manufacturing standards: GB, JB, HG, API, ANSI, BS, JIS, JPI, etc.
6. Material of valve body: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium-molybdenum steel, low-temperature steel, titanium alloy steel, etc.

Q44F Q45F 3 way ball valve Main dimension

DN Q44F Q45F 3 way ball valve Dimension
L D D1 D2 b Z-d H W
Q44F-16C Q44F-16P Q644F-16C Q644F-16P Q944F-16C Q944F-16P Q45F-16C  Q45F-16P  Q645F-16C Q645F-16P Q945F-16C Q945F-16P
15 108 95 65 45 14 414 95 140
20 117 105 75 55 14 414 105 160
25 127 115 85 65 14 414 113 180
32 140 135 100 78 16 418 135 250
40 165 145 110 85 16 418 142 300
50 178 160 125 100 16 418 154 350
65 191 180 145 120 18 418 175 350
80 203 195 160 135 20 818 190 400
100 229 215 180 155 20 818 225 500
125 356 245 210 185 22 818 245 600
150 394 280 240 210 24 823 265 800
200 457 335 295 265 26 1223 305 800
250 533 405 355 320 30 1225 370 1300
