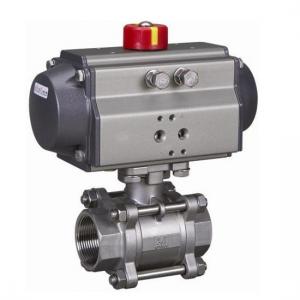

Q611F Pneumatic three pieces ball valve

Q611F Pneumatic three pieces ball valve Product introduction

Q611F Pneumatic three pieces ball valve is composed of NPT,RC,BSP,G Threaded ball valve and double acting or single acting pneumatic actuator, Q611F Pneumatic three pieces ball valve is used for medium diversion, confluent and flow direction switching, any pipe can be used as an inlet or outlet. Q611F Pneumatic three pieces ball valveis widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, aviation, aerospace, papermaking and other industrial fields.

2 Q611F Pneumatic three pieces ball valve product range:
-Ball valve size: 1/2" ~ 2" (DN25-DN50)
-Pressure: ANSI Class 150~600(PN16-PN100)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic automated ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic automated ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Q611F Pneumatic three pieces ball valve actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time
