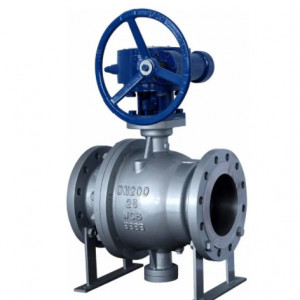

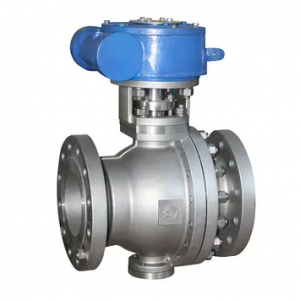

Q347Y Metal seated ball valve

Q347Y Metal seated ball valveQ347Y Metal seated ball valve
Q347Y Metal seated ball valve

Q347Y Metal seated ball valve Product introduction

Q347Y metal seated ball valve manufacturer, factory and supplier. Q347Y metal seated ball valve is  trunnion mounted structure, which is for high temperarure medium and severe workding condition. The primary advantage of Q347Y metal seated ball valve over soft seated ball valve is their ability to withstand high temperatures and severe service conditions. Metal seats can endure severe flashing, hydraulic shock, abrasive process fluid, and high temperatures up to and exceeding 540 ℃. Q347Y metal seated ball valve is also ideal for high erosion or corrosion applications. Metal seats can be hardened by coatings like ultrasonic spray coating, satellite hard facing, chromium carbide and tungsten carbide.

Q347Y metal seated ball valve specification
Basic Design: ASME B16.34
Sizes: 1/2″-24″
Pressures: ANSI 150lb-2500lb
Materials: Forged / Cast Carbon
Ends: RF, RTJ, BW
Forged Steel Body
Steam Service
Live Loaded Stem Packing
HVOF Chrome Carbide Coated Ball
Spring Loaded Upstream Seat for Low Pressure Seal
Reduced Bore Available
ISO Mounting Pad upon Request
