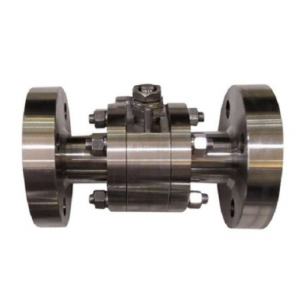

High pressure metal seated ball valve
High pressure metal seated ball valve
High pressure metal seated ball valve Product introduction
High pressure metal seated ball valve manufacturer, factory and supplier. High pressurel metal seated ball valve is for high temperarure medium and severe workding condition. The primary advantage of high pressure metal seated ball valve over soft seated ball valve is their ability to withstand high temperatures and severe service conditions. Metal seats can endure severe flashing, hydraulic shock, abrasive process fluid, and high temperatures up to and exceeding 540 ℃. High pressure metal seated ball valve is also ideal for high erosion or corrosion applications. Metal seats can be hardened by coatings like ultrasonic spray coating, satellite hard facing, chromium carbide and tungsten carbide.
High pressure metal seated ball valve specification
Basic Design: ASME B16.34
Sizes: 1/2″-24″
Pressures: ANSI 150lb-2500lb
Materials: Forged / Cast Carbon / Stainless Steel
Ends: RF, RTJ, BW
Forged Steel Body
Steam Service
Live Loaded Stem Packing
HVOF Chrome Carbide Coated Ball
Spring Loaded Upstream Seat for Low Pressure Seal
Reduced Bore Available
ISO Mounting Pad upon Request
