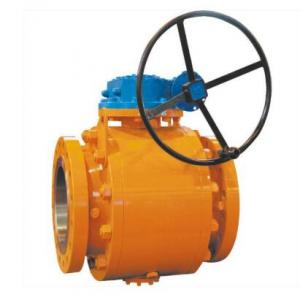

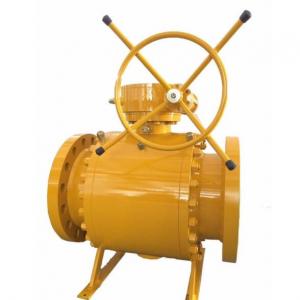

600LB Cast steel trunnion ball valve

600LB Cast steel trunnion ball valve Product introduction

　600LB Cast steel trunnion ball valve is equipped with trunnion seat, after being subjected to medium pressure, the seat of 600LB Cast steel trunnion ball valve produces movement, so that the sealing ring is pressed tightly on the ball to ensure the seal. Usually on top of the ball, the lower shaft is equipped with bearings, the operating torsion distance is small, suitable for high pressure and large caliber valves. In order to reduce the operating torque of the ball valve and increase the reliability of the seal, oil seal ball valve has appeared again in recent years, not only in the sealing surface pressure injection special lubricating oil, to form a layer of oil film, that is, enhance the sealing, but also reduce the operating torque, more suitable for high pressure large caliber ball valve.

600LB Cast steel trunnion ball valve specification

Product Name	600LB Cast steel trunnion ball valve
1. Material	A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size	2''~48'' ( DN50~DN1200)
4. Port	Full Port
5. Working Pressure	150LB~2500LB
6. Connection Ends	Flange
7. Working Temp.	-196ºC~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	PTFE, RPTFE, PPL
10. Locking	Option
11. Inspection & Testing	According to API598

600LB Cast steel trunnion ball valve feature

Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8" & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic

600LB Cast steel trunnion ball valve standard
Design And Manufacture : ASME B16.34/API 6D
Valve Structural Length : ASME B16.10
Flange Connection Dimension : ASME B 16.5
Valve Check Up And Manufacture Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
