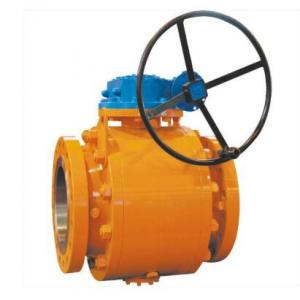

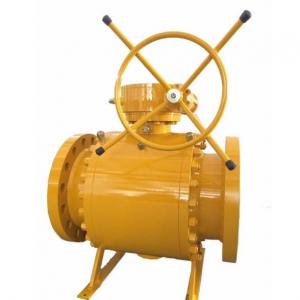

3PC Trunnnion ball valve 900LB

3PC Trunnnion ball valve 900LB3PC Trunnnion ball valve 900LB
3PC Trunnnion ball valve 900LB

3PC Trunnnion ball valve 900LB Product introduction

 3PC trunnion ball valve 900LB is equipped with trunnion seat, after being subjected to medium pressure, the seat of 3PC trunnion ball valve 900LB produces movement, so that the sealing ring is pressed tightly on the ball to ensure the seal. Usually on top of the ball, the lower shaft is equipped with bearings, the operating torsion distance is small, suitable for high pressure and large caliber valves. In order to reduce the operating torque of the ball valve and increase the reliability of the seal, oil seal ball valve has appeared again in recent years, not only in the sealing surface pressure injection special lubricating oil, to form a layer of oil film, that is, enhance the sealing, but also reduce the operating torque, more suitable for high pressure large caliber ball valve.


3PC trunnion ball valve 900LB specification

Product Name 3PC trunnion ball valve 900LB
1. Material A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size 2''~48'' ( DN50~DN1200)
4. Port Full Port
5. Working Pressure 150LB~2500LB
6. Connection Ends Flange
7. Working Temp. -196ºC~450ºC
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing According to API598

3PC trunnion ball valve 900LB  feature

Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8" & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic


3PC trunnion ball valve 900LB standard
Design And Manufacture : ASME B16.34/API 6D
Valve Structural Length : ASME B16.10
Flange Connection Dimension : ASME B 16.5
Valve Check Up And Manufacture Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
