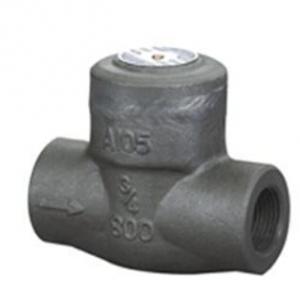

Weld bonnet forged check valve

Weld bonnet forged check valveWeld bonnet forged check valve
Weld bonnet forged check valve

Weld bonnet forged check valve Product introduction

Weld bonnet forged check valve Features:
 welded connection valve cover
 spring loaded to ensure that even in the low-pressure sealing performance when the same good
Weld bonnet forged check valve Application criteria:
 Design: API 602/ASME 16.34/BS 5352
 Pressure Test: API 598
 tag: MSS SP25
 SW Socket welding ends according to ASME B16.11
 BW butt end by ASME B16.25
 NPT threaded connectors according to ASME B1.20.1
Weld bonnet forged check valve Pressure rating
 CLASS 800
 CLASS 1500
 CLASS 2500
Weld bonnet forged check valve Size range
1 / 4 "to 2"
Weld bonnet forged check valve Optional Materials
 Carbon Steel: A105, LF2
 Stainless Steel: F304, F304L, F316, F316L
 Duplex: F51, F55
 Alloy: F1, F5, F5A, F9, F11, F22
