Pressure Seal Globe Valve Product introduction

Pressure Seal Globe Valve is OS&Y,Rising stem,Plug Disc Pressure sealing Bonnet (PSB),Threaded or welded seating.

Pressure Seal Globe ValveType: Through way type , Y type Globe valve, and Angle Type globe valve, OS&Y, Rising Stem .
Disc: Plug type disc, regulating disc(throttling disc) ,regular disc,
Bonnet : Pressure seal bonnet (PSB)
Sear Ring:Rrenewable seat ring seat ring , welded seat ring or Integral Seat
Type of connection:Raised Face flange (RF) , RING TYPE JOINT FLANGE(RTJ), Butt welding ends (BW) ASME B16.25
Pressure Seal Globe ValveTypeMaterial:
Carbon Steel:
A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, monel k500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C
Duplex Stainless Steel: A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel: A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB) Gunmetal: B148 C95500,C95800,C95400,B62, C83600,B61,B62 C92200, B150 C63200
DIN Material: GS-C25,1.0619 1.4408, 1.4308,C22.8

Pressure Seal Globe ValveType Operated type: Hand wheel , Gear Operated, Pneumatic Operated, Electric Operated, Impact Hand wheel Operated or Bare stem with ISO5210 top mounting pad for actuator etc.

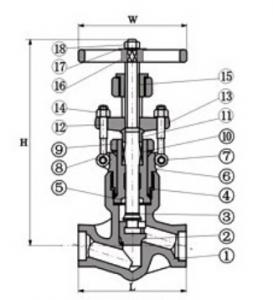

Pressure Seal Globe Valve Main part material

NO.
Part name
WCB
LCB
WC6
WC9
08
Stud and nut
A193 Gr B7/A194 Gr 2H
A193 Gr B7/A194 Gr 4
A193 Gr B16/A194 Gr 4/7
A193 Gr B16/A194 Gr 4/7
07
Gland packing
Graphite
Graphite
Graphite
Graphite
06
Gasket
Soft lron
Soft lron
Ss304
Ss304
05
Thrust ring
A105
A182 F304
A182 F11
A182 F22
04
Back up ring
A105
A182 F304
A182 F11
A182 F22
03
Yoke
A216 Gr WCB
A352 Gr LCB
A271 Gr WC6
A271 Gr WC9
02
Bonnet
A216 Gr WCB
A352 Gr LCB
A271 Gr WC6
A271 Gr WC9
01
Body
A216 Gr WCB
A352 Gr LCB
A271 Gr WC6
A271 Gr WC9

NO.
Part name
C5
C12
CF8
CF8M
08
Stud and nut
A193 Gr B16/A194 Gr 4/7
A193 Gr B16/A194 Gr 4/7
A193 Gr B7/A194 Gr 2H
A193 Gr B7/A194 Gr 2H
07
Gland packing
Graphite
Graphite
Graphite
Graphite
06
Gasket
Ss304
Ss304
Ss304
Ss316
05
Thrust ring
A182 F22
A182 F22
A182 F304
A182 F316
04
Back up ring
A182 F22
A182 F22
A182 F304
A182 F316
03
Yoke
A216 Gr C5
A217 Gr C12
A351 Gr CF8
A351 Gr CF8M
02
Bonnet
A216 Gr C5
A217 Gr C12
A351 Gr CF8
A351 Gr CF8M
01
Body
A216 Gr C5
A217 Gr C12
A351 Gr CF8
A351 Gr CF8M

Pressure Seal Globe Valve Main dimension

CLASS 600~2500 PRESSURE SEALING GLOBE VALVE

PRESSURE SEALING GLOBE VALVE Dimensions
Class 600
Size
inch
2
2-1/2
3
4
5
6
8
10
12
L-L1
mm
292
330
356
432
508
559
660
787
838
L1-SP
mm
178
216
254
305
381
457
584
711
813
H
mm
510
610
610
725
800
1010
1180
1360
1780
K
mm
250
300
300
350
500
550
600
600
400 ?ont
WT
Kg
38
65
105
105
185
230
410
615
895

PRESSURE SEALING GLOBE VALVEDimensions
Class 900
Size
inch
2
2-1/2
3
4
5
6
8
10
12
L-L1
mm
368
419
381
457
559
610
737
838
965
L1-SP
mm
225
254
305
365
432
508
660
787
914
H
mm
550
580
675
750
815
1085
1300
1420
1825
K
mm
300
350
350
500
500
350 ?ont
350 ?ont
400 ?ont
450 ?ont
WT
Kg
70
85
105
130
255
315
670
925
1200

PRESSURE SEALING GLOBE VALVE Dimensions
Class 1500
Size
inch
2
2-1/2
3
4
5
6
8
10
L-L1
mm
368
419
470
546
673
705
832
991
L1-SP
mm
216
254
305
405
483
559
711
864
H
mm
565
580
380
800
825
1130
1450
1535
K
mm
300
350
400
450
500
600
450 ?ont
500 ?ont
WT
Kg
80
90
115
160
300
410
650
1150

PRESSURE SEALING GLOBE VALVE Dimensions
Class 2500
Size
inch
2
2-1/2
3
4
5
6
8
10
L-L1
mm
451
508
578
673
794
914
1022
1270
L1-SP
mm
279
330
368
457
533
610
762
914
H
mm
575
605
725
835
875
1200
1510
1720
K
mm
350
350
350 ?ont
400 ?ont
400 ?ont
400 ?ont
450 ?ont
550 ?ont
WT
Kg
95
110
125
210
565
615
1050
1525
Gear operation suggested.Dimensions on request.Abbreviation: SP-Short pattern.
