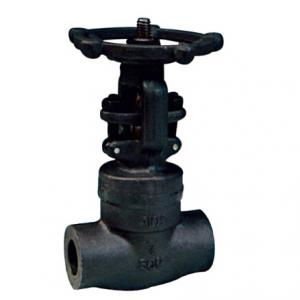

Welded bonnet forged globe valve

Welded bonnet forged globe valve Product introduction

Welded bonnet forged globe valve Features:
 welded connection valve cover
 Integral seal down
 low leakage test stem packing by
 automatically adjust the preload gland packing
Welded bonnet forged globe valve Application criteria:
 Design: API 602/ASME 16.34/BS 5352
 Pressure Test: API 598
 tag: MSS SP25
 SW Socket welding ends according to ASME B16.11
 BW butt end by ASME B16.25
 NPT threaded connectors according to ASME B1.20.1
Welded bonnet forged globe valve Pressure rating
 CLASS 800
 CLASS 1500
 CLASS 2500
Welded bonnet forged globe valve Size range
1 / 4 "to 2"
Welded bonnet forged globe valve Optional Materials
 Carbon Steel: A105, LF2
 Stainless Steel: F304, F304L, F316, F316L
 Duplex: F51, F55
 Alloy: F1, F5, F5A, F9, F11, F22
