API Forged Presure seal Gate Valve

API Forged Presure seal Gate ValveAPI Forged Presure seal Gate Valve
API Forged Presure seal Gate Valve

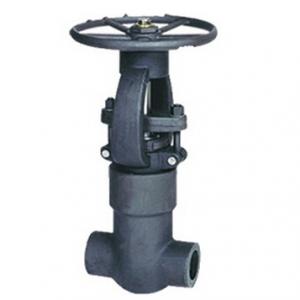

API Forged Presure seal Gate Valve Product introduction

API Forged Presure seal Gate Valve

API Forged Presure seal Gate Valve Main part material


NO.

Part Name

CS to ASTM

AS to ASTM

SS to ASTM

Type A105

Type F22

Type F304(L)

Type F316(L)

1

Body

A105

A182 F22

A182 F304(L)

A182 F316(L)

2

Seat

A276 420

A276 304

A276 304(L)

A276 316(L)

3

Wedge

A276 430&410

A182 F304

A182 F304(L)

A182 F316(L)

4

Stem

A182 F6

A182 F304

A182 F304(L)

A182 F316(L)

5

Pressure Seat

A105

A182 F304

A182 F304(L)

F316(L)

6

Pressure Ring

A276 304L

A276 316L

7

Bonnet

A105

A182 F22

A182 F304(L)

A182 F316(L)

8

Gland Eye hold

A193 B7

A193 B16

A193 B8(M)



9

Pin

A276 420

A182 F304(L)

10

Stem Packing

Flexible Graphite

PTFE

11

P.S. Lock Nut

A194 2H

A194 4

A194 8

A194 8M

12

Gland

A276 F420

A182 F304

13

Gland Flange

A216 WCB

A351 CF8

14

Nut

A194 2H

A194 4

A194 8

A194 8M

15

Yoke Nut

A276-410

16

Retaining Nut

A194 2H

A194 4

A194 8

A194 8M

17

Hand wheel

A197

18

H.W. Lock Nut

A194 2H

A194 4

A194 8

A194 8M

19

Oil Cup

Brass

Suitable Medium

W.O.G. etc

W.O.G. etc

HNO3,CH3OOH etc

Suitable Temperature

-29 425 font

-29 550 font

-29 180 font

Note: Other materials are available upon request.

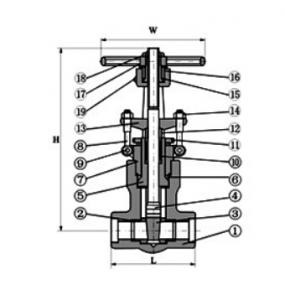

API Forged Presure seal Gate Valve Main dimension

NPS

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

L

900~1500Lb

140

140

140

178

178

216

2500Lb

186

186

186

232

232

279

H(OPEN)

321

321

321

380

414

502

W

160

160

180

200

250

280

Weights

900Lb~1500Lb

11.5

10.8

10.5

19.6

21.0

55.4

2500Lb

12.3

11.6

10.8

26.0

28.4

60.0
