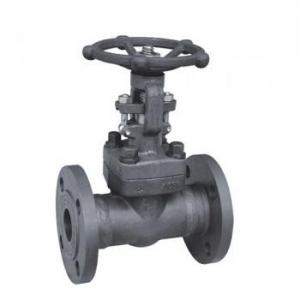

Bolted bonnet flange gate valve

Bolted bonnet flange gate valveBolted bonnet flange gate valve
Bolted bonnet flange gate valve

Bolted bonnet flange gate valve Product introduction

Bolted bonnet flange gate valve Features:
 piece forging flange
 Ming rod structure
 Integral seal down
 to remove seat
 low leakage test stem packing by
 automatically adjust the preload gland packing

Bolted bonnet flange gate valve Application criteria:
 Design: API 602/ASME 16.34/BS 5352
 Pressure Test: API 598
 tag: MSS SP25
 SW connector standard: ASME B16.11
 threaded connector (NPT) Standard: ASME B1.20.1

Bolted bonnet flange gate valve Pressure rating
 CLASS 150
 CLASS 300
 CLASS 600
 CLASS 1500
 CLASS 2500

Bolted bonnet flange gate valve Size range
1 / 4 "to 4"

Bolted bonnet flange gate valve Optional Materials
 Carbon Steel: A105, LF2
 Stainless Steel: F304, F304L, F316, F316L
 Duplex: F51, F55
 Alloy: F1, F5, F5A, F9, F11, F22
