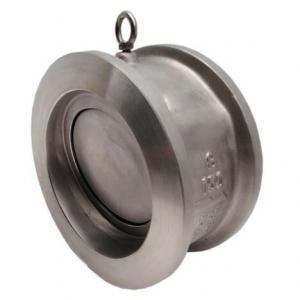

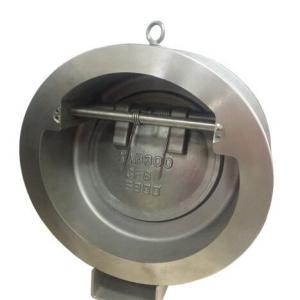

Wafer tilting disc check valve

Wafer tilting disc check valveWafer tilting disc check valve
Wafer tilting disc check valve

Wafer tilting disc check valve Product introduction

 Wafer tilting disc check valve is a metal seated non-return valve, with a single disc and casted monoblock body.Wafer tilting disc check valve is provided with a high level of tightness. The slanted seat is integrated in the disc, and allows a quick shut-off. Additionally, an auxiliary spring and counterweight can also be provided in order to improve the shut-off performance and avoid water hammer in liquid media.


Wafer tilting disc check valve Product Range:

Body material: carbon steel, stainless steel, alloy steel,bronze

Nominal diameter:1.5"~48"(DN40~DN1200)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-196℃~+560℃


Wafer tilting disc check valve Specification:

Design and manufacture:API594,API 6D,JB/TB8937;
Face to face and end to end:API594,API6D,DIN3202,JB/T8937;
Pressure-temperature rating:ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;
Inspection and test: API598,JB/T9092;
Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.
