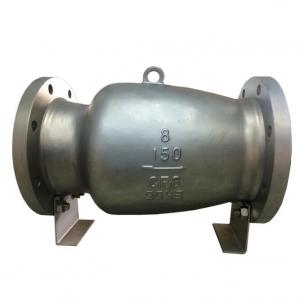

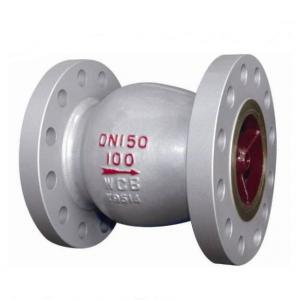

Axial flow nozzle type check valve

Axial flow nozzle type check valve Product introduction

　China Axial flow nozzle check valve manufacturer and factory for Non slam axial flow nozzle type check valve revents reverse flow by a slowly sealing before the pump stops.Axial flow nozzle type check valve design reduces the closing time avoiding water hammer. The seat can be metal or soft seated and its disc' conical surface design provides a tight sealing.

Axial flow nozzle type check valve ensures an excellent dynamic performance minimizing vibrations and noise.

Axial flow nozzle type check valve Product Range:

Body material: carbon steel, stainless steel, alloy steel,bronze

Nominal diameter:1.5"~48"(DN40~DN1200)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-196℃~+560℃

Axial flow nozzle type check valve Specification:

Design and manufacture:API594,API 6D,JB/TB8937;
Face to face and end to end:API594,API6D,DIN3202,JB/T8937;
Pressure-temperature rating:ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;
Inspection and test: API598,JB/T9092;
Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.
