H41F46 Lift PTFE lined check valve

H41F46 Lift PTFE lined check valve Product introduction

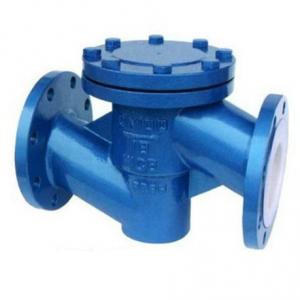

H41F46 Lift PTFE lined check valve manufacturer, factory and supplier. H41F46 Lift PTFE lined check valve is mainly used for chemical industries,such as sulfuric acid, alkali etc. H41F46 Lift PTFE lined check valve is swing type construction. Body material we can provide ASTM A216 WCB, or stainless steel CF8, CF8M etc. H41F46 Lift PTFE lined check valve liner material PFA, PTFE,FEP.

H41F46 Lift PTFE lined check valve specification:

Body Material	Carbon steel WCB, stainless steel 304 316 or others
Disc Material	Carbon steel WCB, stainless steel 304 316 or others
Liner	PTFE/FEP/PFA
O-Ring	Viton
Nominal Width	DN50 – DN600
Operating Pressure	PN10
Operating Temperature	-20 – 150⁰C
Connection	Flange
Operating Mode	/

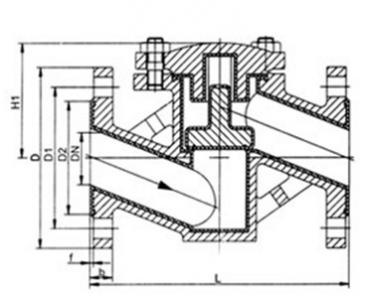

H41F46 Lift PTFE lined check valve Main dimension

H41F46-10 Lift PTFE lined check valve dimension

DN	Diemnsion
	L	D	D	D	f	b	Z-Фd	D0	H	weight
	PN1.0(MPa)
15	130	95	65	45	2	14	4-Ф14	105	55	5
20	150	105	75	55	2	16	4-Ф14	115	58	7
25	160	115	85	65	2	16	4-Ф14	128	60	9
32	180	135	100	78	2	18	4-Ф18	145	75	11
40	200	145	110	85	3	18	4-Ф18	160	82	13.5
50	230	160	125	100	3	20	4-Ф18	178	95	18
65	290	180	145	120	3	20	4-Ф18	205	105	22
80	310	195	160	135	3	22	4-Ф18	230	120	28
100	350	215	180	155	3	22	8-Ф18	255	135	34
125	400	245	210	185	3	24	8-Ф18	305	158	58
150	480	280	240	210	3	24	8-Ф23	345	180	72
200	495	335	295	265	3	26	8-Ф23	415	215	150
250	622	390	350	320	3	28	12-Ф23	490	240	165
300	698	440	400	368	4	28	12-Ф23	540	265	190
350	787	500	460	428	4	30	16-Ф23	585	300	225
400	914	565	515	482	4	32	16-Ф25	635	360	254
450	978	615	565	532	4	32	20-Ф25	680	385	285
500	978	670	620	585	4	34	20-Ф25	740	415	333

H41F46-16 Lift PTFE lined check valve dimension

DN	Standard data							Reference date
	L	D	D	D	f	b	Z-Фd	D0	H	Weight
	PN1.6(MPa)
15	130	95	65	45	2	14	4-Ф14	110	55	6
20	150	105	75	55	2	16	4-Ф14	120	58	7.8
25	160	115	85	65	2	16	4-Ф14	135	60	10
32	180	135	100	78	2	18	4-Ф18	150	75	12.5
40	200	145	110	85	3	18	4-Ф18	165	82	14.5
50	230	160	125	100	3	20	4-Ф18	185	95	19.5
65	290	180	145	120	3	20	4-Ф18	210	105	25.5
80	310	195	160	135	3	22	8-Ф18	235	120	30
100	350	215	180	155	3	24	8-Ф18	260	135	36
125	400	245	210	185	3	26	8-Ф18	310	158	62
150	480	280	240	210	3	28	8-Ф23	350	180	78
200	495	335	295	265	3	30	12-Ф23	420	215	156
250	622	405	355	320	3	32	12-Ф25	505	240	172
300	698	460	410	375	4	34	12-Ф25	560	265	240
350	787	520	470	435	4	38	16-Ф25	605	300	208
400	914	580	525	485	4	40	16-Ф30	650	350	265
